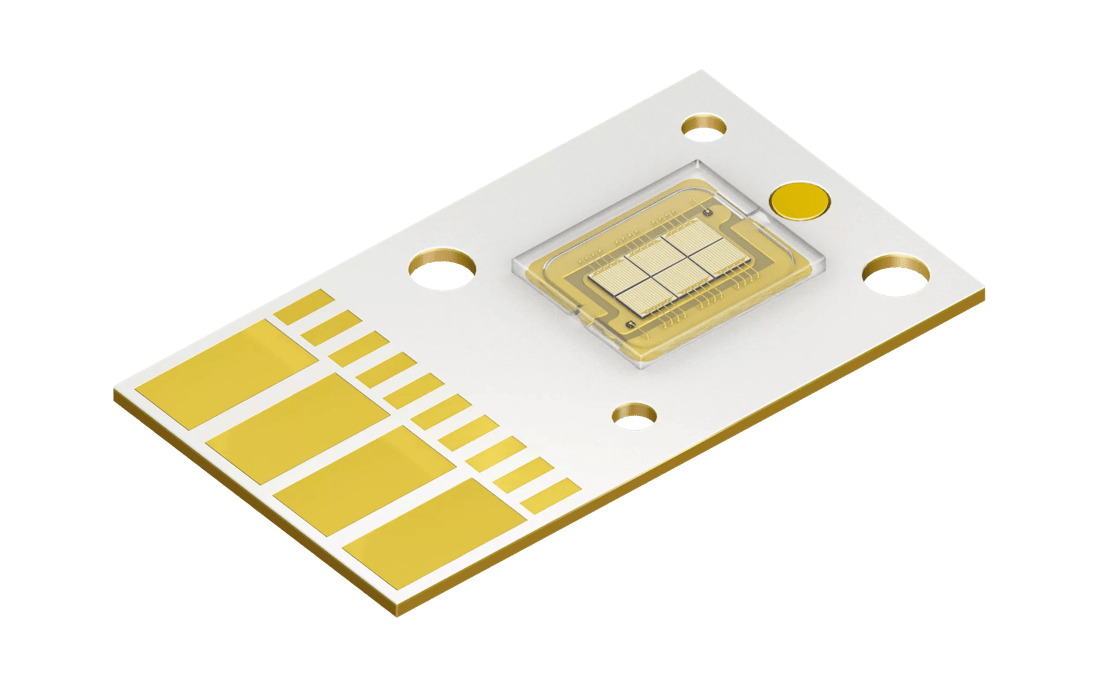

OSRAM OSRAM OSTAR® Projection Power, LE B P3W 01
Discontinued
×
Discontinued
Details
Parameters
Color of emission
Blue (450-480 nm)
Electrical power
120.0
W
Ultra High
Brightness
ΦV
1520
lm
IV
546
cd
ΦE
34500
mW
IE
12400
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
27.0
mm
w
15.5
mm
h
2.1
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LE B P3W 01-GZHZ-VW | Φe = 24000 ... 45000 mW (IF = 36000 mA) | Q65112A4119 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| LE B P3W 01-GZHZ-24 | Φe = 24000 ... 45000 mW (IF = 36000 mA) | Q65112A4108 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
