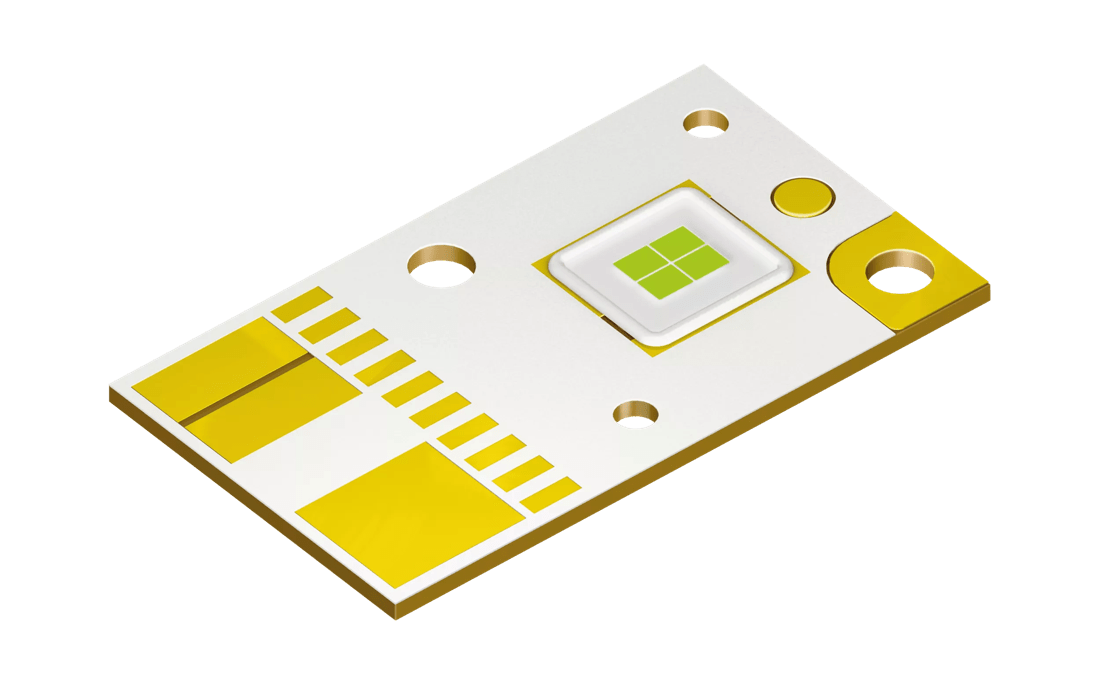

OSRAM OSRAM OSTAR® Projection Power, LE CG P2A
Discontinued
×
Discontinued
Details
Parameters
Color of emission
Green (565-575 nm)
Electrical power
80.0
W
Ultra High
Brightness
ΦV
7800
lm
IV
2800
cd
ΦE
17100
mW
IE
6140
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
27.0
mm
w
15.5
mm
h
2.1
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LE CG P2A-7U7V-A | ΦV = 5600 ... 10000 lm (IF = 24000 mA) | Q65112A3031 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
