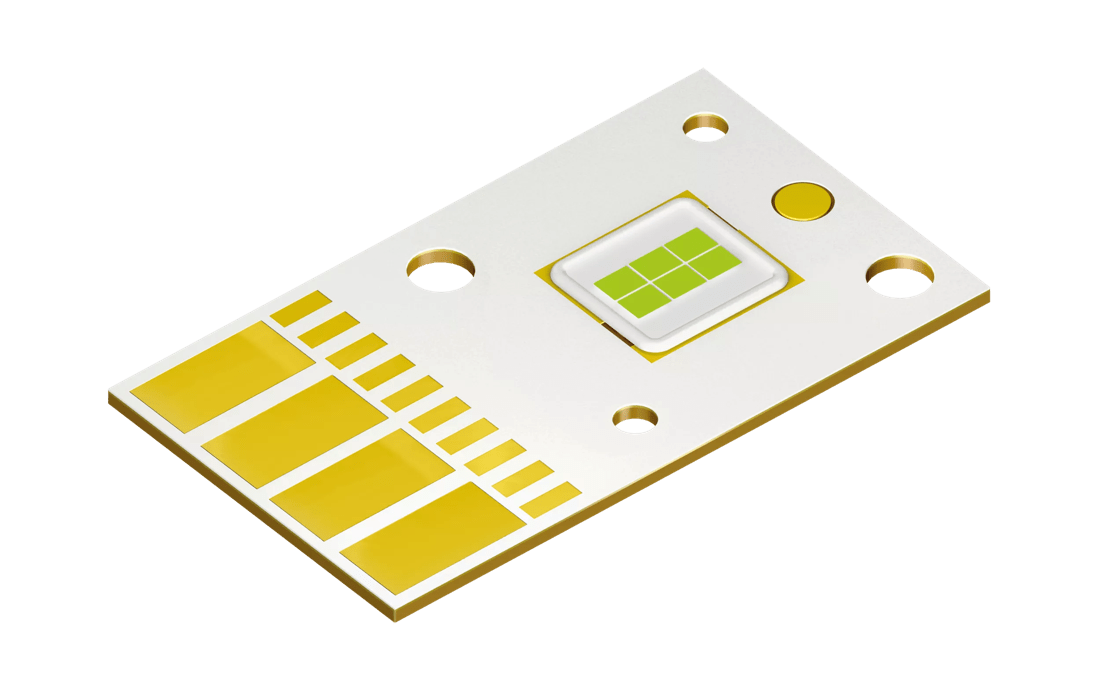

OSRAM OSRAM OSTAR® Projection Power, LE CG P3A 01
Discontinued
×
Discontinued
Details
Parameters
Color of emission
Green (565-575 nm)
Electrical power
120.0
W
Ultra High
Brightness
ΦV
11000
lm
IV
3950
cd
ΦE
24100
mW
IE
8660
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
27.0
mm
w
15.5
mm
h
2.1
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LE CG P3A 01-6V6W-1 | ΦV = 8000 ... 14000 lm (IF = 36000 mA) | Q65112A3032 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
