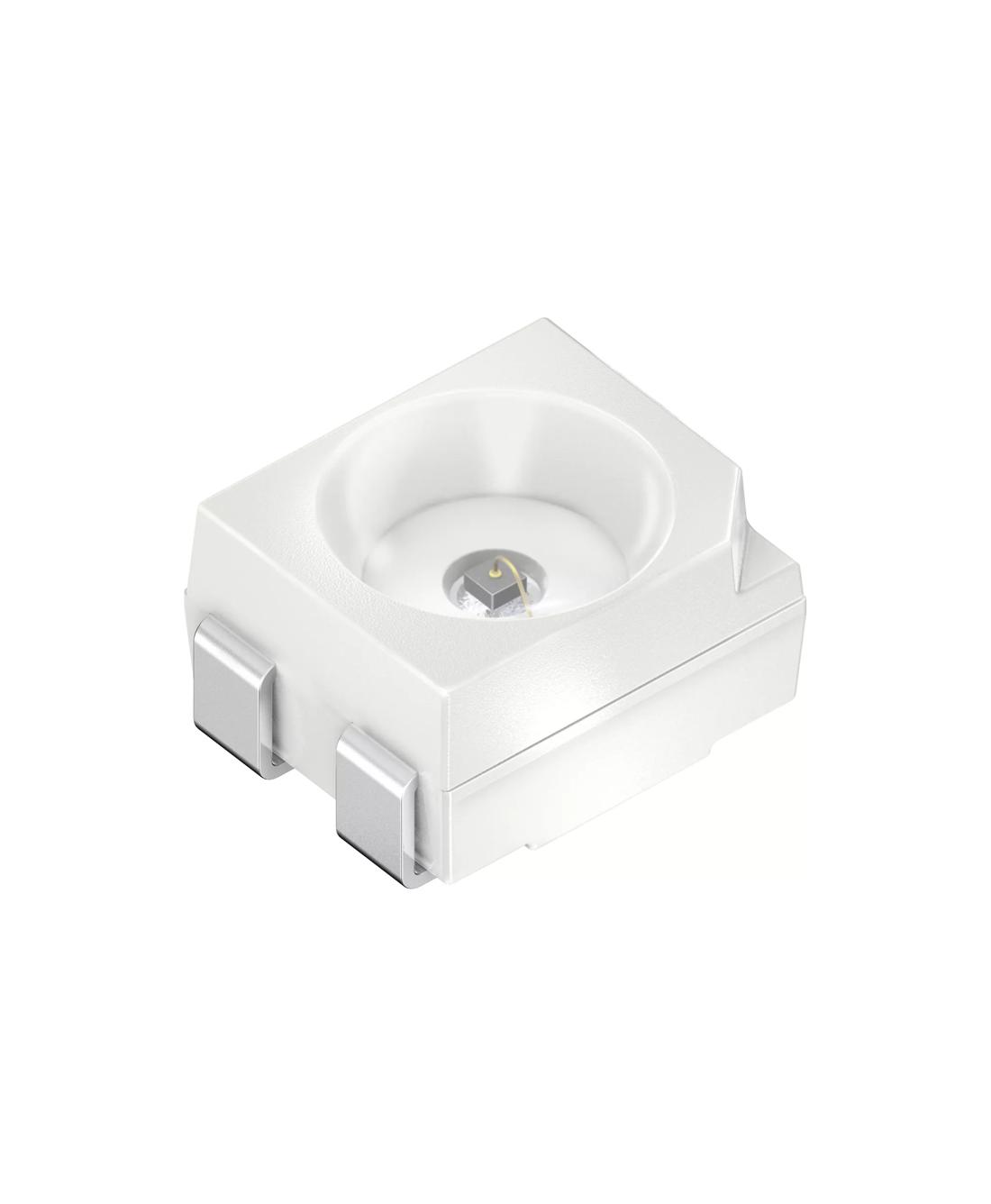

OSRAM Power TOPLED®, LY E67B

Discontinued
×
Discontinued

Description

PowerTOPLED, a powerful member of the TOPLED family. Thanks to their high luminous efficacy, the LEDs are ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.11 W
Low
Brightness
ΦV
2.77 lm
IV
0.878 cd
ΦE
5.72 mW
IE
1.82 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.2 mm
w
2.8 mm
h
1.9 mm

Ordering codes

Product Type Description Order No. Availability
LY E67B-U2AA-26-1 Iv = 560 ... 1400 mcd (IF = 50 mA) Q65110A2323
LY E67B-T2AA-26-1 Iv = 355 ... 1400 mcd (IF = 50 mA) Q65110A2324
LY E67B-T2V1-26-1 Iv = 355 ... 900 mcd (IF = 50 mA) Q65110A2322
