Details
Parameters
Color of emission
Blue (450-480 nm)
Electrical power
0.064
W
Low
Brightness
ΦV
0.426
lm
IV
0.14
cd
ΦE
5.88
mW
IE
1.93
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
4.0
mm
w
4.0
mm
h
3.6
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LB A67C-P2S1-35-1 | Iv = 56 ... 224 mcd (IF = 20 mA) | Q65112A2768 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For other documents visit our
Download center
Datasheets
LB A67C
Datasheet
Application note
Preventing LED failures caused by corrosive materials
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Determination of resistances for brightness compensation
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

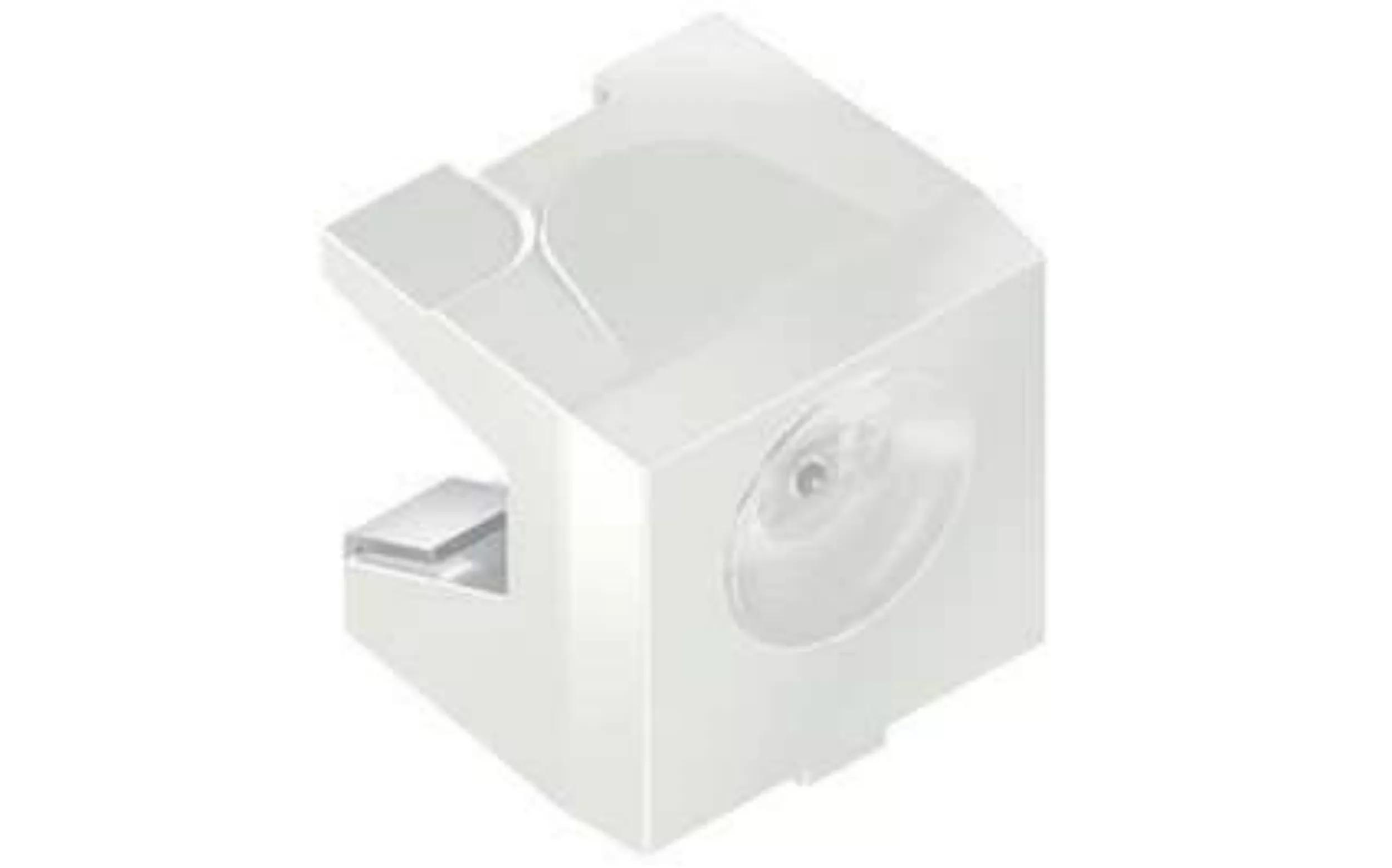

SIDELED_Productpicture
