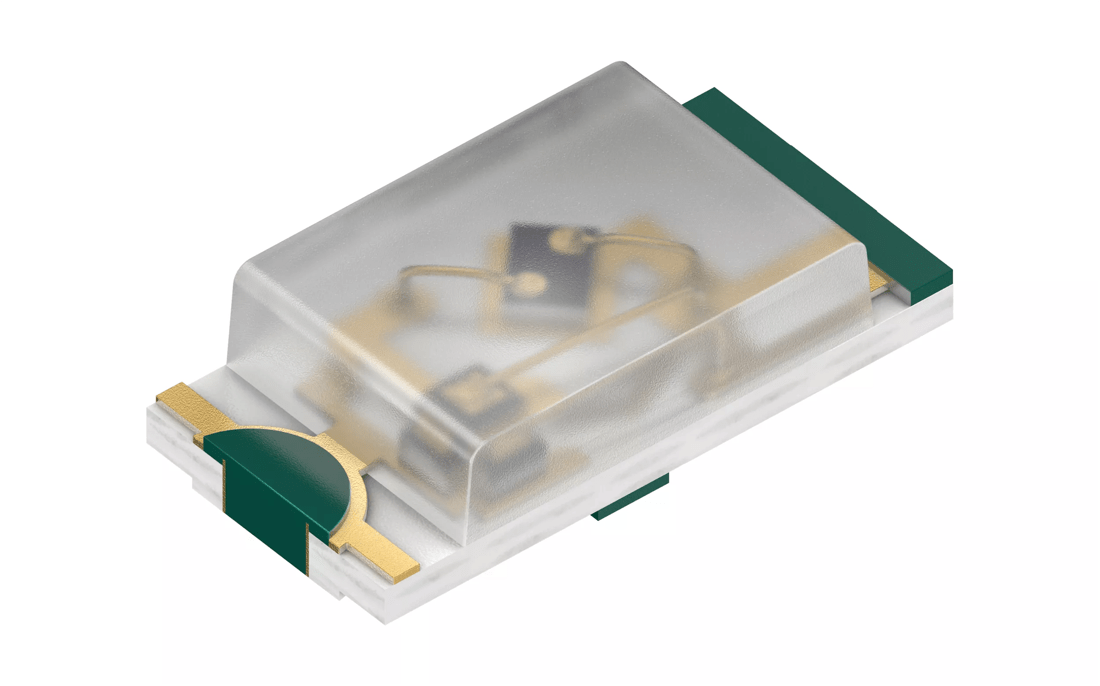

OSRAM SMARTLED™ 0603, KB EELP41.12

×

Description

The SMARTLED™ 0603 is the product of choice for status indication and symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature range makes the devices from this series suitable for professional industrial equipment and applications.
Datasheet
KB EELP41.12
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
0.014 W
Low
Brightness
ΦV
0.358 lm
IV
0.0915 cd
ΦE
4.19 mW
IE
1.07 mW/sr
Beam angle
∢
130 °
∢
145 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.4 mm

Ordering information

Product Type Description Ordering code Availability
KB EELP41.12-P1R2-36-3X4X Iv = ≥ 45.0 mcd (IF = 5 mA) Q65113A7464 Full production
