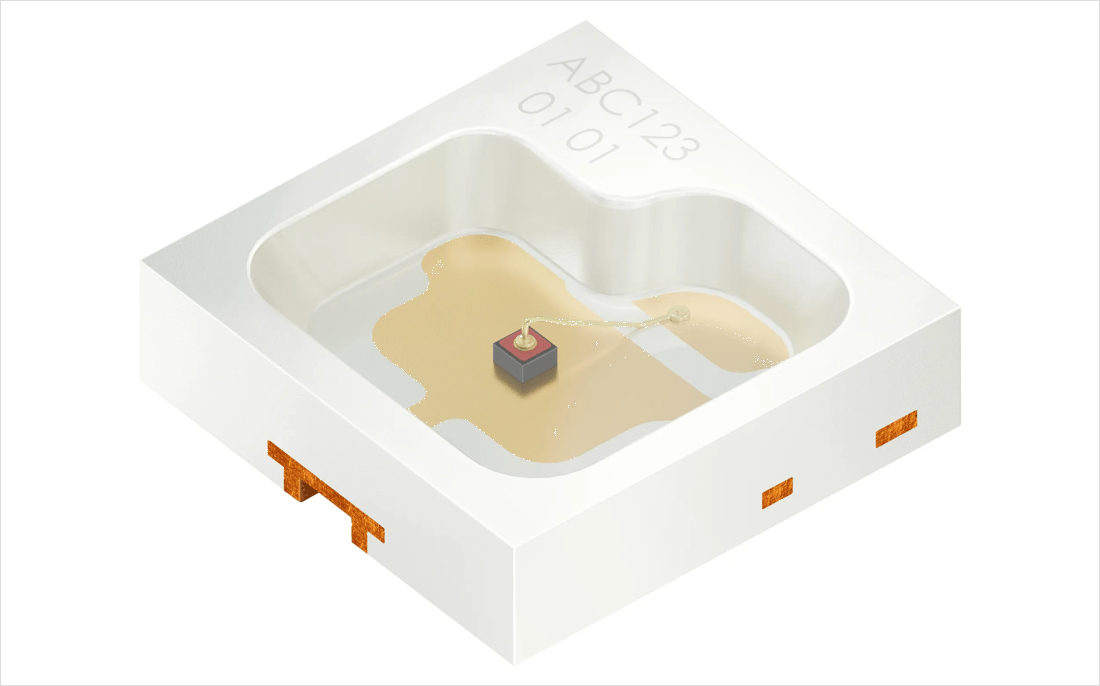

OSRAM SYNIOS™ P2222, KR DDLK3A.23

New
×
New

Description

The SYNIOS™ P2222 is the new standard LED for Automotive Signaling applications. It features a small package outline and is available in all application-specific colors.
Datasheet
KR DDLK3A.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.12 W
Low
Brightness
ΦV
7.6 lm
IV
2.54 cd
ΦE
43.2 mW
IE
14.4 mW/sr
ΦP
0.0402 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.25 mm
w
2.25 mm
h
0.6 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KR DDLK3A.23-D4EB-ARBR-Q3T3 ΦV = 5.0 ... 11.2 lm (IF = 50 mA) Q65115A1762 Pre-production
KR DDLK3A.23-DADB-CR-Q3T3 ΦV = 4.5 ... 7.1 lm (IF = 50 mA) Q65115A2873 Pre-production
