OSRAM SYNIOS® P2720, KS DMLQ32.23

Description

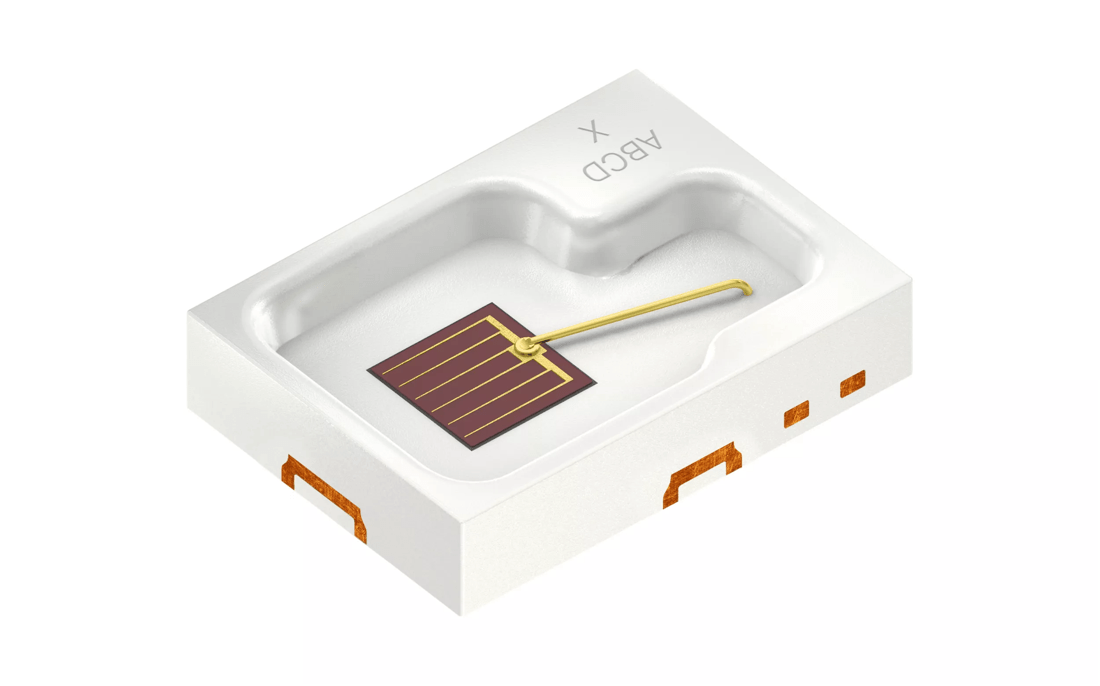

This compact LED device is part of the SYNIOS P2720 family. Given the scalability of this product family, it provides full performance and flexibility with just one footprint. The KS DMLQ32.23 product is meant to provide superior light quality in ½ mm² chip size class. The next generation SYNIOS® P2720 Kx DMLQ32.23 delivers higher performance, while remaining fully footprint- and solder pad-compatible to the previous version.

Datasheet

KS DMLQ32.23

English

Download

Chinese

Download

KS DMLQ32.23 specified @ 700mA

English

Download

Chinese

Download

Select & order

Details

Parameters

Color of emission

Super Red (627-639 nm)

Electrical power

1.8 W

High

Brightness

Φ_V

51.3 lm

I_V

16.5 cd

Φ_E

430 mW

I_E

138 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

125 °C

Dimension

2.0 mm

2.7 mm

0.6 mm

Application fields

Automotive & mobility Static signaling

Ordering codes

Product Type	Description	Order No.	Availability
KS DMLQ32.23-6H8J-68-J3T3	Φ_V = 31.5 ... 71.0 lm (I_F = 350 mA)	Q65113A5158	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
KS DMLQ32.23-7J5L-68-M3W3	Φ_V = 56.0 ... 125.0 lm (I_F = 700 mA)	Q65113A6225	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
