OSRAM SYNIOS® P2720, KY DMLQ31.23

OSRAM SYNIOS® P2720, KY DMLQ31.23
Discontinued
×
Discontinued

Description

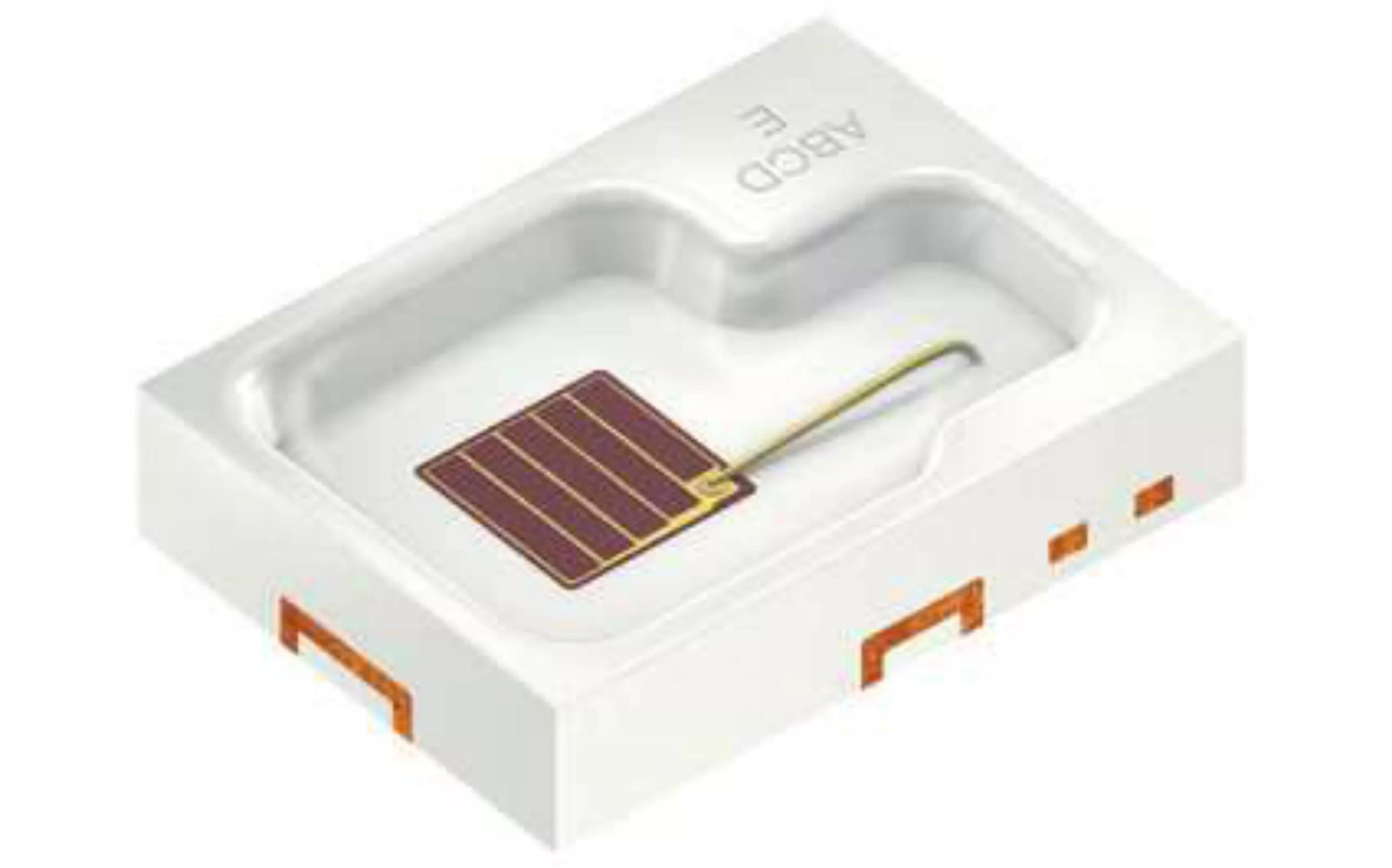

This compact LED device is part of the SYNIOS P2720 family. Given the scalability of this product family, it provides full performance and flexibility with just one footprint. The KY DMLQ31.23 product is meant to provide superior light quality in ½ mm² chip size class.
Datasheet
KY DMLQ31.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.83 W
High
Brightness
ΦV
60.5 lm
IV
19.5 cd
ΦE
121 mW
IE
38.9 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
2.75 mm
w
2.0 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
KY DMLQ31.23-GZJZ-35-J3T3 ΦV = 24 ... 71 lm (IF = 350 mA) Q65112A9934
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
KY DMLQ31.23-HZKY-46-J3T3 ΦV = 39 ... 97 lm (IF = 350 mA) Q65112A9932
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
