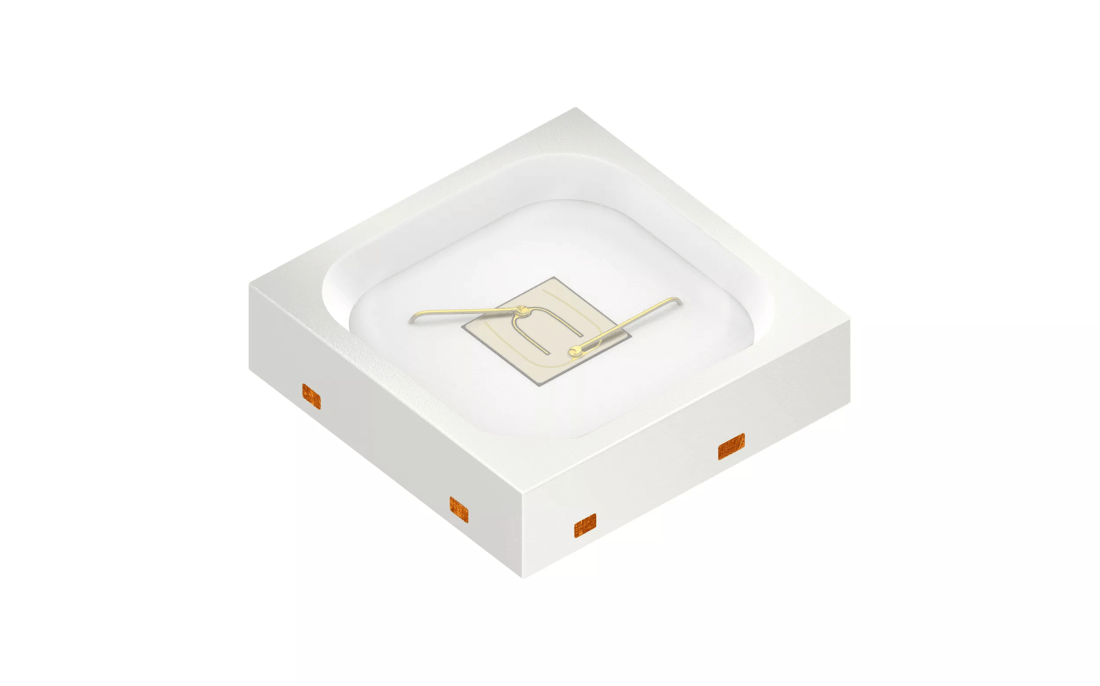

OSRAM SYNIOS™ S2222, KB DDLM32.13

×

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Datasheet
KB DDLM32.13
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
0.28 W
Mid
Brightness
ΦV
9.25 lm
IV
3.08 cd
ΦE
125 mW
IE
41.6 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.65 mm

Ordering information

Product Type Description Ordering code Availability
KB DDLM32.13-DUFR-7A-K1M2 ΦV = 6580 ... 14000 mlm (IF = 100 mA) Q65113A5719 Full production
