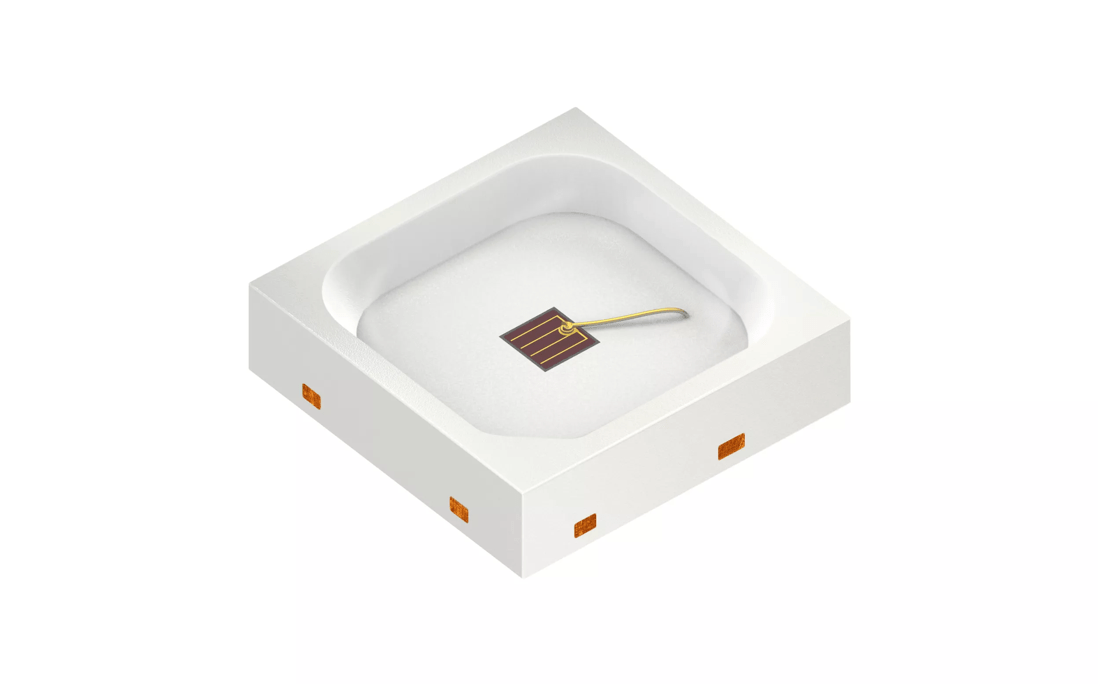

OSRAM SYNIOS™ S2222, KS DDLM32.23

×

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Datasheet
KS DDLM32.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Super Red (627-639 nm)
Electrical power
0.22 W
Mid
Brightness
ΦV
16.5 lm
IV
5.38 cd
ΦE
115 mW
IE
37.5 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.6 mm

Ordering information

Product Type Description Ordering code Availability
KS DDLM32.23-FQGS-68-D1G2 ΦV = 12.1 ... 24.0 lm (IF = 100 mA) Q65113A5730 Full production
