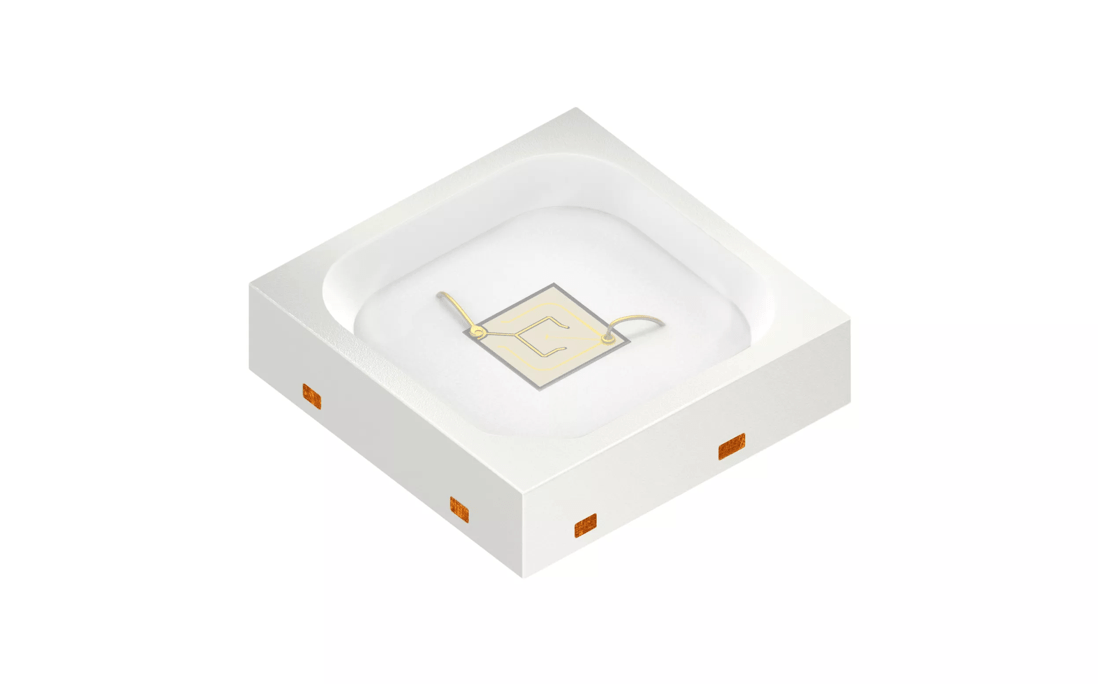

OSRAM SYNIOS® S2222, KT DDLM32.13

Name: OSRAM SYNIOS® S2222, KT DDLM32.13
Brand: ams-OSRAM AG

New

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.

Datasheet

Select & order

Details

Parameters

Color of emission

True Green (513-545 nm)

Electrical power

0.28 W

Mid

Brightness

Φ_V

45.1 lm

I_V

15.6 cd

Φ_E

92.2 mW

I_E

31.8 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

110 °C

Dimension

2.2 mm

0.65 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation

Automotive & mobility Ambient lighting

Lighting Indoor lighting Entertainment

Ordering codes

Product Type	Description	Order No.	Availability
KT DDLM32.13-HRJS-35-K1M1	Φ_V = 33.0 ... 61.0 lm (I_F = 100 mA)	Q65113A5727	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
