OSRAM SYNIOS™ S2222, KY DDLM32.23

×

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Datasheet
KY DDLM32.23
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.22 W
Mid
Brightness
ΦV
26 lm
IV
8.7 cd
ΦE
49.1 mW
IE
16.2 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.65 mm

Ordering information

Product Type Description Ordering code Availability
KY DDLM32.23-GPHQ-24-D1G2 ΦV = 18.0 ... 33.0 lm (IF = 100 mA) Q65115A1176 Full production
KY DDLM32.23-GPHS-26-D1G2 ΦV = 18.0 ... 39.0 lm (IF = 100 mA) Q65115A1177 Full production
KY DDLM32.23-GRHS-46-D1G2 ΦV = 21.0 ... 39.0 lm (IF = 100 mA) Q65115A1175 Full production

Downloads

Datasheets
KY DDLM32.23 · Datasheet · PDF · en_US

Application note
Light guides · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Long-term availability management · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

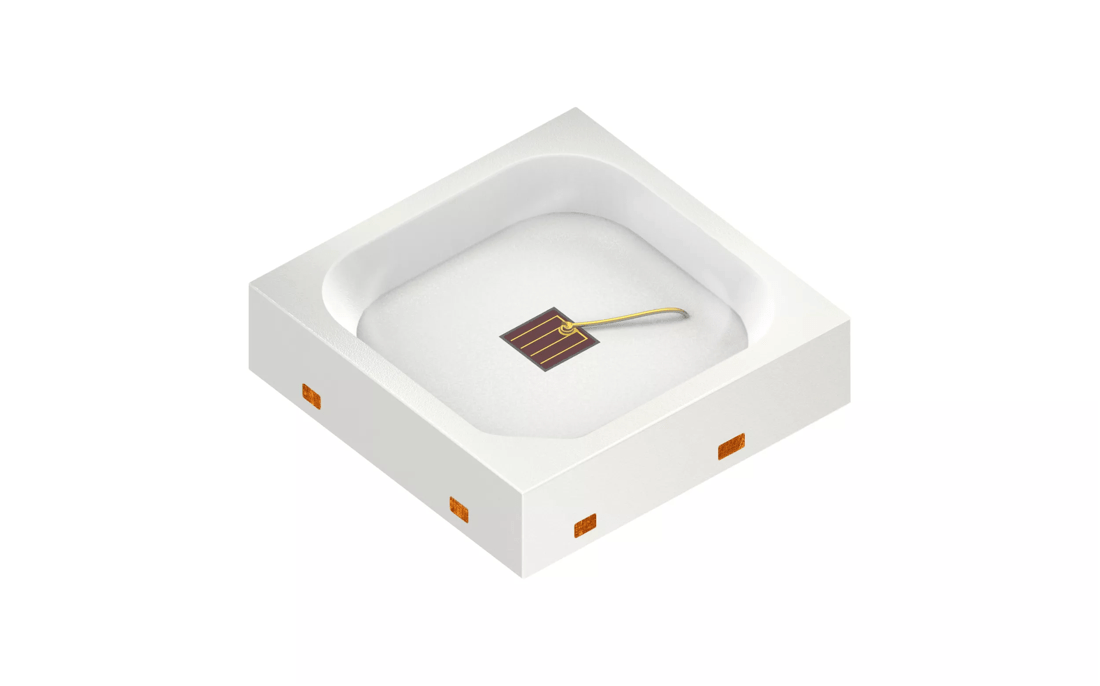

KY_DDLM32-23--Yellow_42x26mm_cmyk · Images · TIF
