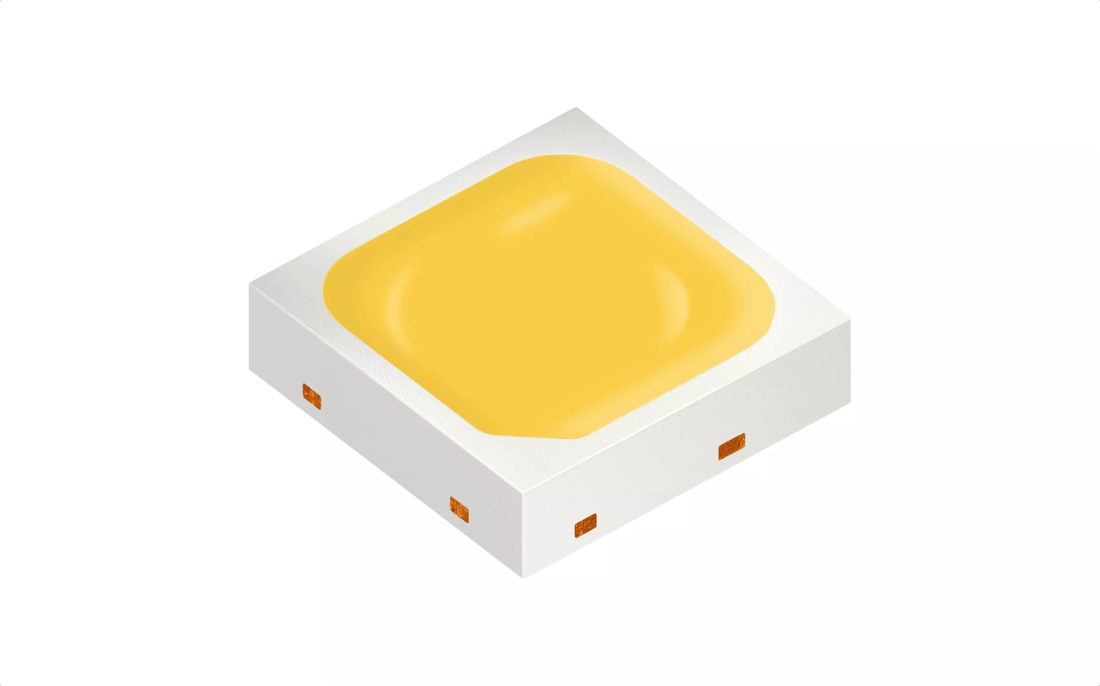

OSRAM SYNIOS® S2222, KY DDLM32.FY

OSRAM SYNIOS® S2222, KY DDLM32.FY
New
×
New

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Datasheet
KY DDLM32.FY
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
0.29 W
Mid
Brightness
ΦV
35 lm
IV
11.9 cd
ΦE
110 mW
IE
37.3 mW/sr
ΦP
0.18 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.65 mm

Ordering codes

Product Type Description Order No. Availability
KY DDLM32.FY-HQJQ-5F5G-K1M2 ΦV = 30.4 ... 52.0 lm (IF = 100 mA) Q65113A5729
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
