OSRAM TOPLED® E1608, KB DELSS2.D1

OSRAM TOPLED® E1608, KB DELSS2.D1
×

Product features

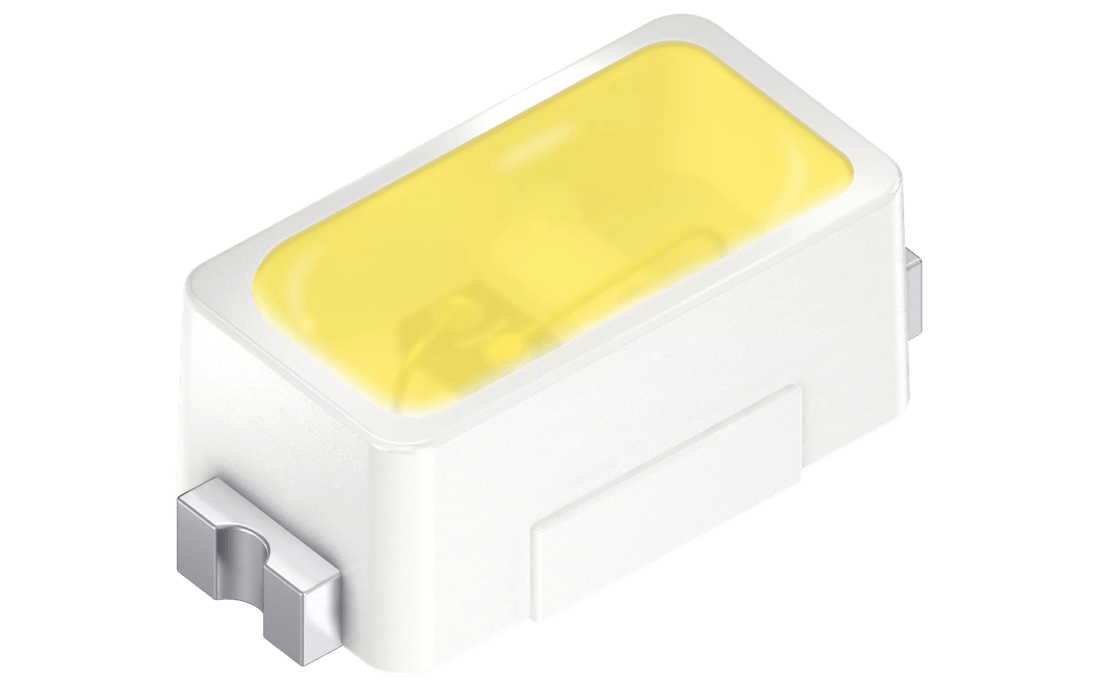

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept.Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.

Downloads

Datasheet

KB DELSS2.D1

Datasheet / 2.0 MB

Application note

TOPLED® E1608 LEDs for automotive interior design

Product related / 1.7 MB

Chemical compatibility of LEDs

General information / 2.0 MB

Comparison of simple LED circuits for low power LEDs

Electrical design / 1.2 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information / 1.7 MB

Details on photobiological safety of LED light sources

General information / 1.4 MB

Determination of resistances for brightness compensation

Electrical design / 873.5 KB

Dimming LEDs with respect to grouping current

Electrical design / 1,007.0 KB

Dry pack information

Handling recommendations / 1.2 MB

ESD protection while handling LEDs

Handling recommendations / 1.8 MB

Fundamentals of LED handling

Handling recommendations / 1.3 MB

Further details on lead free reflow soldering of LEDs

Soldering and processing / 1.4 MB

Handling of silicon resin LEDs

Handling recommendations / 496.2 KB

Importing rayfiles and ray-measurement files of LEDs

General information / 903.2 KB

LED driving technology for long term flexibility

Electrical design / 1.1 MB

LED 可靠性与使用寿命

General information / 1.7 MB

LED 无铅回流焊的详细介绍

Soldering and processing / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General information / 1.9 MB

Long-term availability management

General information / 1.0 MB

Manual lead-free soldering of LEDs

Soldering and processing / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

General information / 2.5 MB

Measuring of the temperature profile during the reflow solder process

Soldering and processing / 1.2 MB

PCB technologies for LED applications

Thermal management / 3.1 MB

Package related thermal resistance of LEDs

Thermal management / 2.1 MB

Preventing LED failures caused by corrosive materials

General information / 1.2 MB

Processing of SMD LEDs

Soldering and processing / 4.5 MB

Recommended pick-and-place tools for LEDs

Soldering and processing / 6.0 MB

Reliability and lifetime of LEDs

General information / 1.9 MB

Temperature measurement with thermocouples

Thermal management / 3.9 MB

The basic principles of Electrical Overstress (EOS)

Electrical design / 1.6 MB

Thermal management of LED light sources

Thermal management / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Soldering and processing / 1.4 MB

欧司朗光电半导体有限公司 LED 的测量、

General information / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
KB DELSS2.D1-VHAZ-A-2686 Iv = 820 ... 1800 mcd (IF = 20 mA) Q65112A8389
