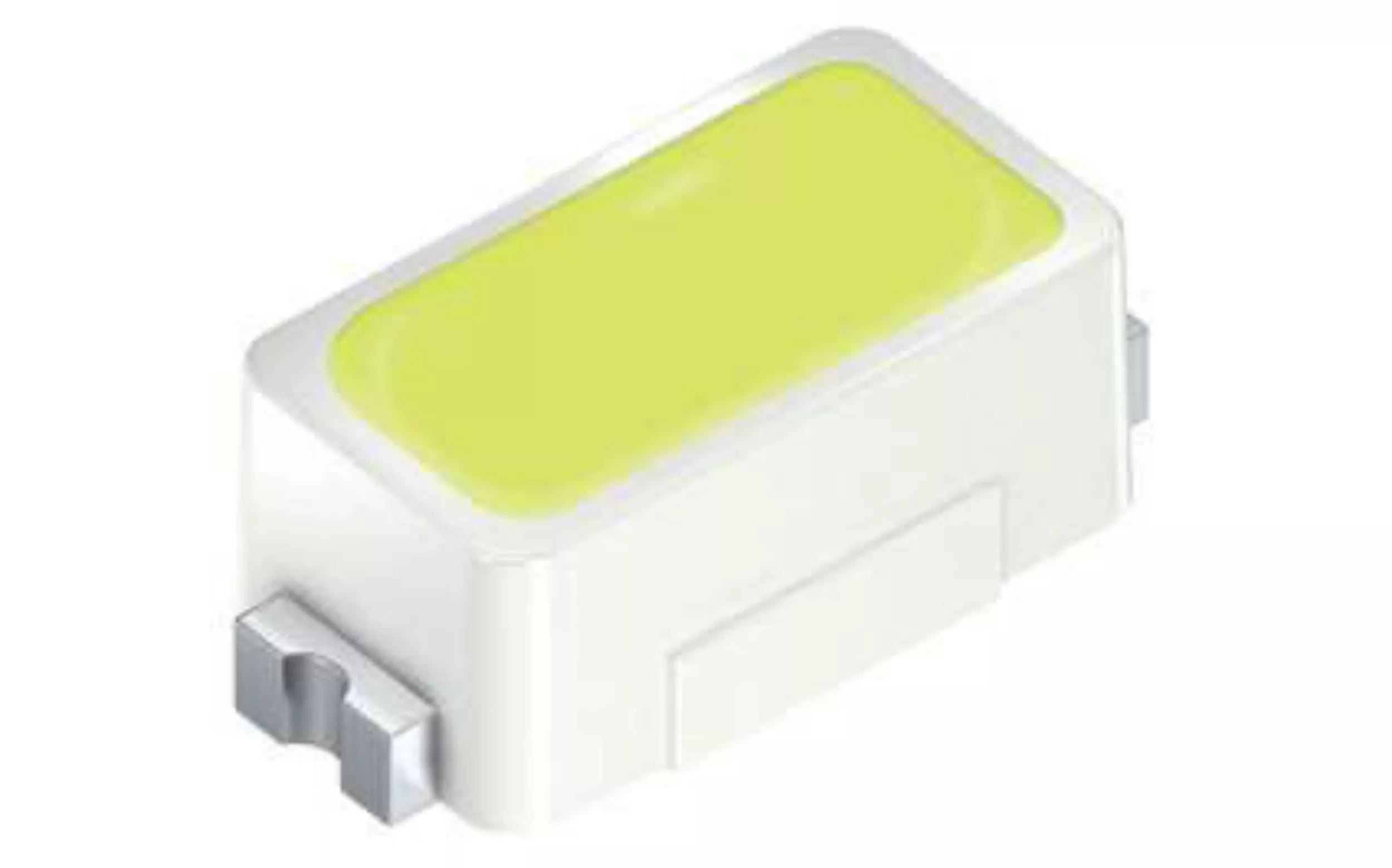

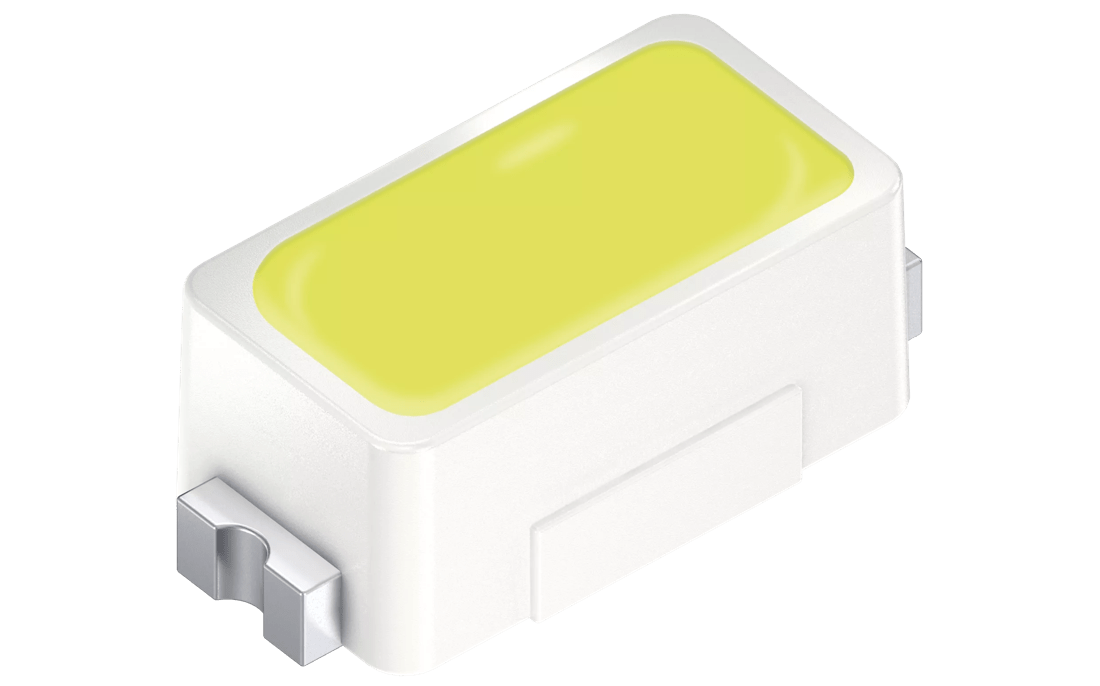

OSRAM TOPLED® E1608, KP DELPS1.FP

Name: OSRAM TOPLED® E1608, KP DELPS1.FP
Brand: ams-OSRAM AG

Product features

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept.Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.

Datasheet Choose product

Application note Optical simulation CAD files Electrical simulation Tools Contact us Support

Downloads

Datasheet

KP DELPS1.FP specified at 2 mA

Datasheet / 2.0 MB

EN CN

KP DELPS1.FP

Datasheet / 2.0 MB

EN CN

Application note

TOPLED® E1608 LEDs for automotive interior design

Product related / 1.7 MB

Chemical compatibility of LEDs

General information / 2.0 MB

Comparison of simple LED circuits for low power LEDs

Electrical design / 1.2 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information / 1.7 MB

Details on photobiological safety of LED light sources

General information / 1.4 MB

Determination of resistances for brightness compensation

Electrical design / 873.5 KB

Dimming LEDs with respect to grouping current

Electrical design / 1,007.0 KB

Dry pack information

Handling recommendations / 1.2 MB

ESD protection while handling LEDs

Handling recommendations / 1.8 MB

Fundamentals of LED handling

Handling recommendations / 1.3 MB

Further details on lead free reflow soldering of LEDs

Soldering and processing / 1.4 MB

Handling of silicon resin LEDs

Handling recommendations / 496.2 KB

Importing rayfiles and ray-measurement files of LEDs

General information / 903.2 KB

LED driving technology for long term flexibility

Electrical design / 1.1 MB

LED 可靠性与使用寿命

General information / 1.7 MB

LED 无铅回流焊的详细介绍

Soldering and processing / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General information / 1.9 MB

Long-term availability management

General information / 1.0 MB

Manual lead-free soldering of LEDs

Soldering and processing / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

General information / 2.5 MB

Measuring of the temperature profile during the reflow solder process

Soldering and processing / 1.2 MB

PCB technologies for LED applications

Thermal management / 3.1 MB

Package related thermal resistance of LEDs

Thermal management / 2.1 MB

Preventing LED failures caused by corrosive materials

General information / 1.2 MB

Processing of SMD LEDs

Soldering and processing / 4.5 MB

Recommended pick-and-place tools for LEDs

Soldering and processing / 6.0 MB

Reliability and lifetime of LEDs

General information / 1.9 MB

Temperature measurement with thermocouples

Thermal management / 3.9 MB

The basic principles of Electrical Overstress (EOS)

Electrical design / 1.6 MB

Thermal management of LED light sources

Thermal management / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Soldering and processing / 1.4 MB

欧司朗光电半导体有限公司 LED 的测量、

General information / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Electrical simulation

Electrical Simulation

Electrical simulation

Download

Ordering codes

Product Type	Description	Order No.	Availability
KP DELPS1.FP-QISI-34	I_v = 97 ... 280 mcd (I_F = 2 mA)	Q65113A0817	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
KP DELPS1.FP-UGVI-34-Z555	I_v = 450 ... 1120 mcd (I_F = 10 mA)	Q65112A3998	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now Mouser Buy now RS Buy now Farnell Buy now
