OSRAM TOPLED® E1608, KT DELQS1.12

OSRAM TOPLED® E1608, KT DELQS1.12
×

Description

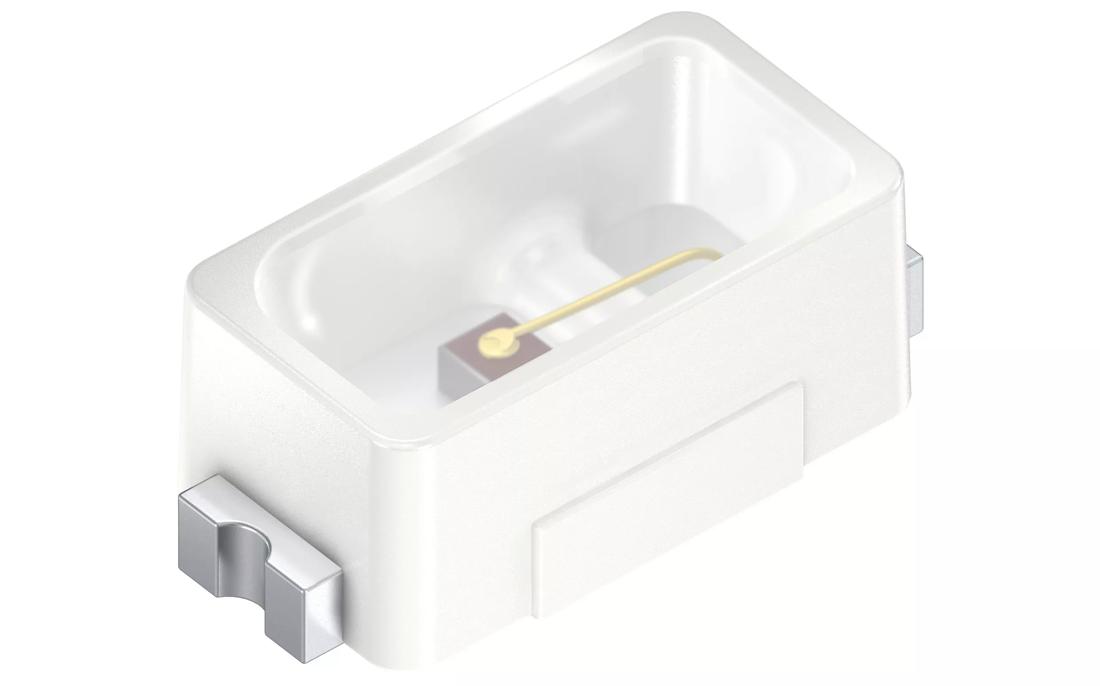

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.
Datasheet
KT DELQS1.12 specified @ 2mA
English
Download
Chinese
Download
KT DELQS1.12
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.027 W
Low
Brightness
ΦV
2.16 lm
IV
0.68 cd
ΦE
4.4 mW
IE
1.39 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
KT DELQS1.12-RGSH-36-N626 Iv = 112.0 ... 240.0 mcd (IF = 2 mA) Q65113A2517
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
KT DELQS1.12-TIVH-36-S446 Iv = 390 ... 970 mcd (IF = 10 mA) Q65113A0865
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now

Downloads

Datasheets

KT DELQS1.12 specified @ 2mA

Datasheet
EN
DE
CN
JP

KT DELQS1.12

Datasheet
EN
DE
CN
JP

Application note

Resources

Images

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide

Product selector

Find the right product.
Product selector

More TOPLED® E1608

TOPLED® E1608 expands ams OSRAMs low power portfolio.
Explore more TOPLED® E1608
