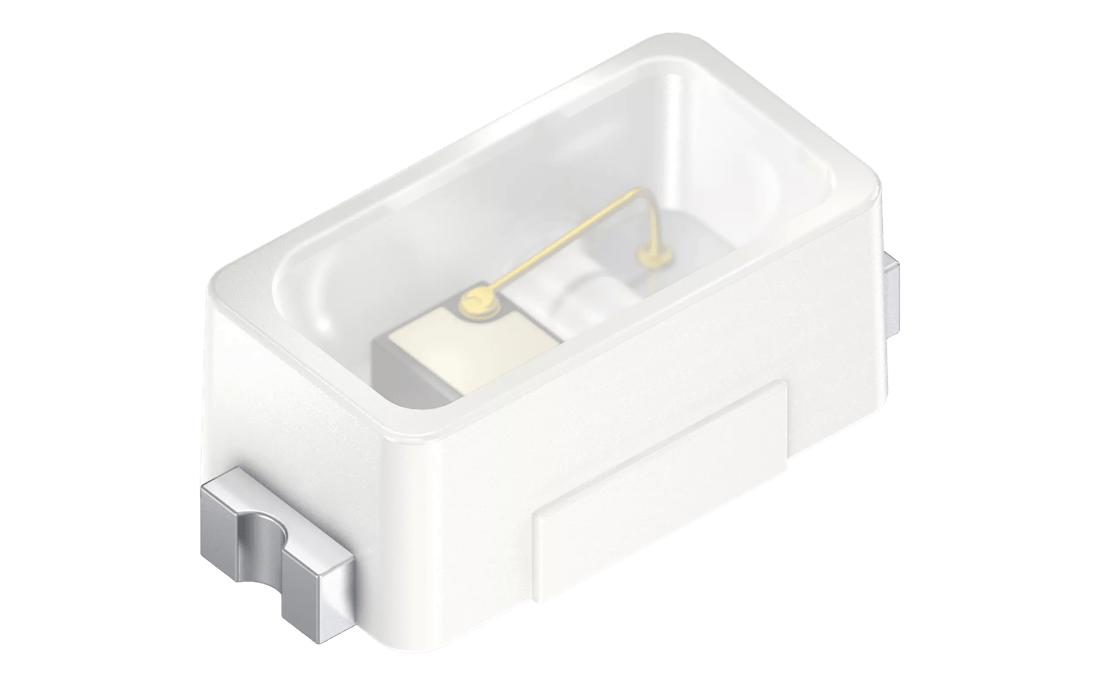

OSRAM TOPLED® E1608, KT DELSS1.12

OSRAM TOPLED® E1608, KT DELSS1.12
×

Description

The TOPLED E1608 expands ams OSRAM’ low power portfolio by offering one of the smallest LED Industry standard footprints in a highly reliable and well proved package concept. Its outstanding performance is suitable for a huge variety of applications especially automotive interior where a small package design with excellent reliability is needed. The TOPLED E1608 is available in different colors and brightness levels.
Datasheet
KT DELSS1.12
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.052 W
Low
Brightness
ΦV
6.32 lm
IV
2.05 cd
ΦE
12.3 mW
IE
4 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
KT DELSS1.12-AYBZ-36-N626 Iv = 1300 ... 2800 mcd (IF = 20 mA) Q65112A9896
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
