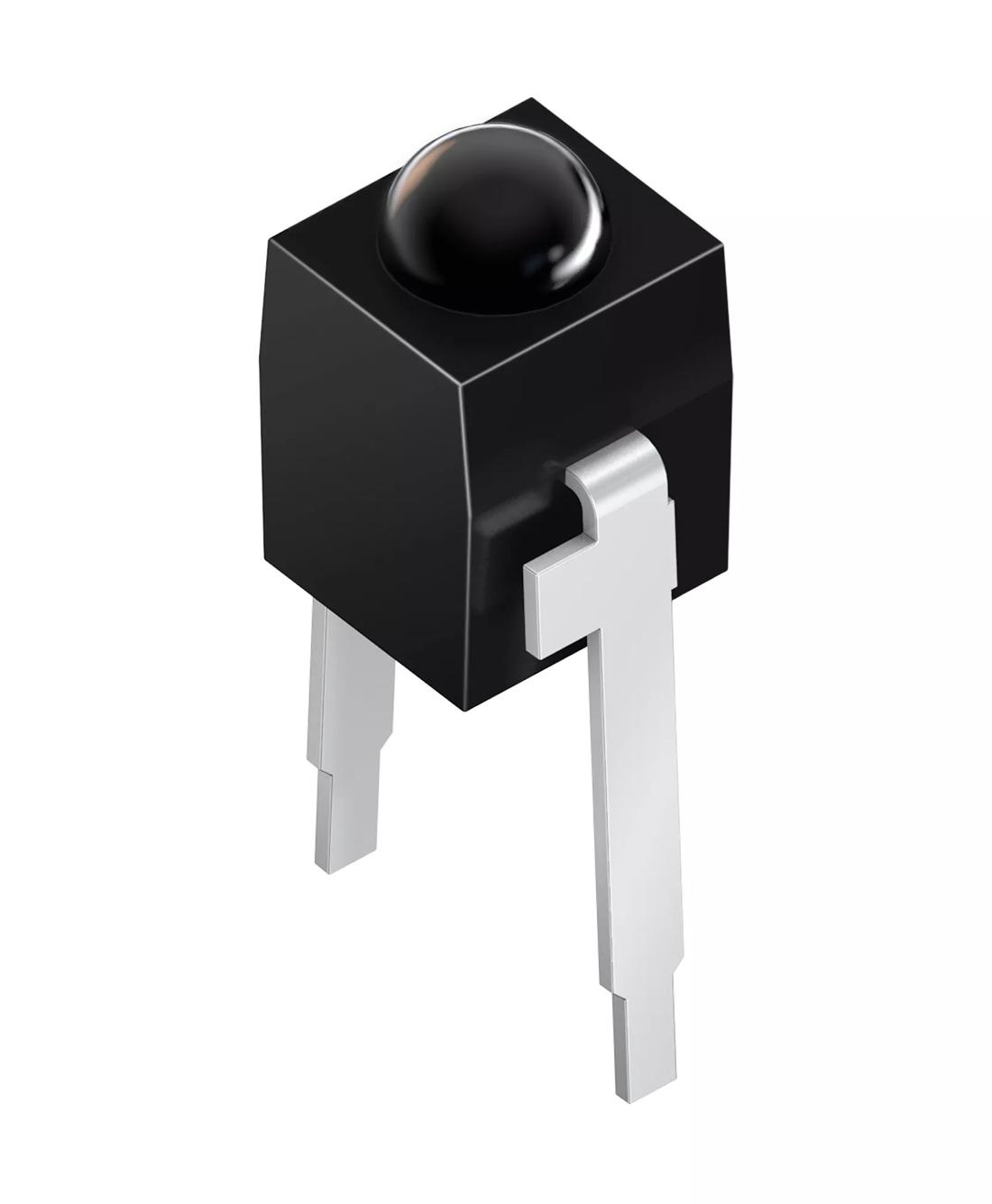

OSRAM Array Mini, SFH 4941

Discontinued
×
Discontinued

Description

Infrared Emitter (940 nm)

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
40 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
30 mW
IE
50 mW/sr
Beam angle
20 °
Dimension
l
2.2 mm
w
2.0 mm
h
3.45 mm
Operating temperature
Top min.
-40 °C
Top max.
80 °C

Ordering codes

Product Type Description Order No. Availability
SFH 4941 Ie = 18 ... 112 mW/sr, (Ie=50 mW/sr typ.) (IF = 40 mA) Q65111A6125
