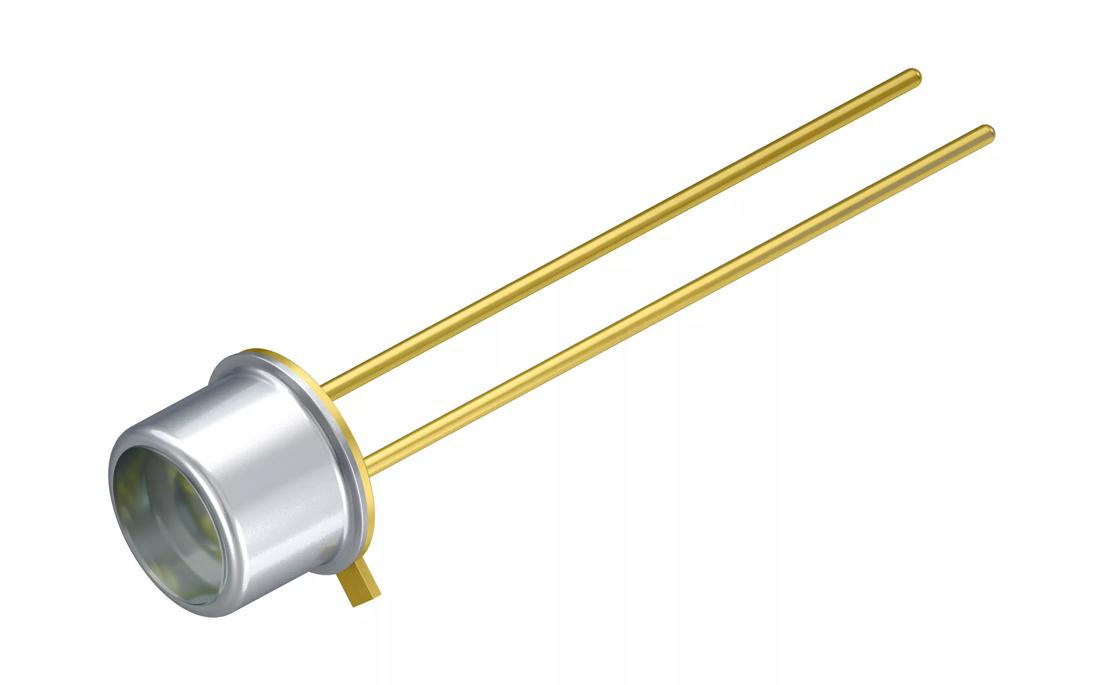

OSRAM Metal Can TO46, SFH 4853

Discontinued
×
Discontinued

Description

Infrared Emitter (850 nm)
Datasheet
SFH 4853
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
860 nm
Brightness
ΦE
40 mW
IE
25 mW/sr
Beam angle
∢
64 °
Dimension
l
5.45 mm
w
5.45 mm
h
3.65 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4853 Ie = 11.2 ... 45.0 mW/sr, (Ie=25 mW/sr typ.) (IF = 100 mA) Q65111A6129 Discontinued
