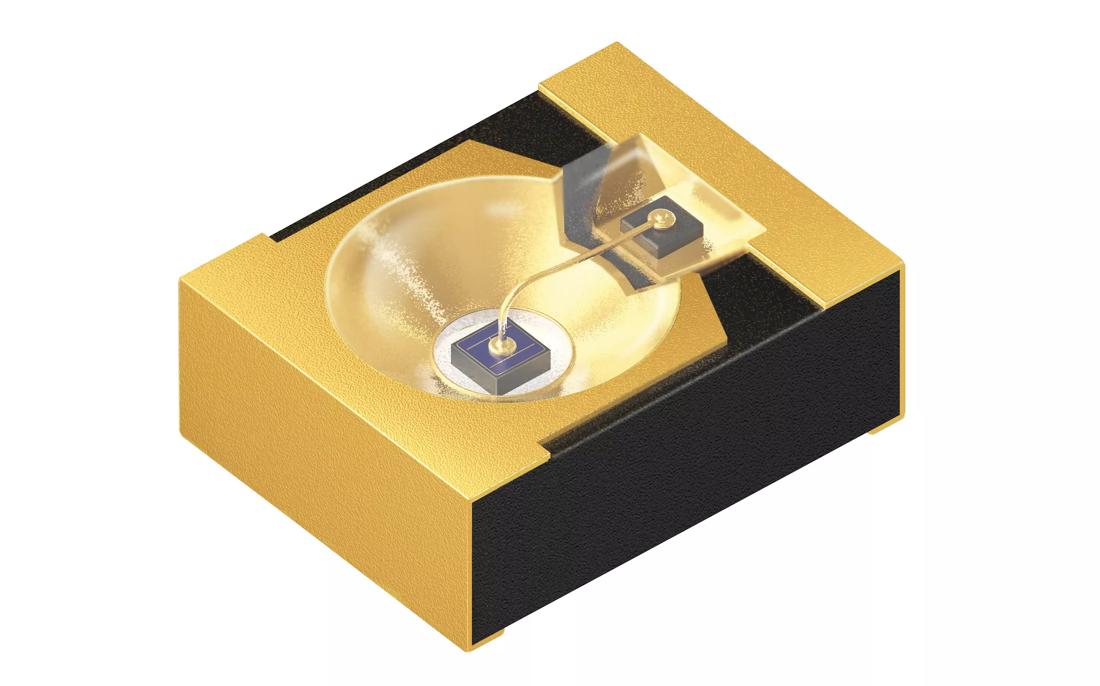

OSRAM MIDLED® Mini, SFH 4451

Discontinued
×
Discontinued

Description

Narrow beam LED in Mini MIDLED package (850 nm)

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
860 nm
Brightness
ΦE
55 mW
IE
70 mW/sr
Beam angle
34 °
Dimension
l
2.3 mm
w
1.95 mm
h
0.9 mm
Operating temperature
Top min.
-40 °C
Top max.
85 °C

Ordering codes

Product Type Description Order No. Availability
SFH 4451-V Ie = 71 ... 112 mW/sr, (Ie=70 mW/sr typ.) (IF = 100 mA) Q65111A6962
SFH 4451-UV Ie = 45 ... 112 mW/sr, (Ie=70 mW/sr typ.) (IF = 100 mA) Q65111A4223
SFH 4451 Ie = 28 ... 112 mW/sr, (Ie=70 mW/sr typ.) (IF = 100 mA) Q65111A2583
