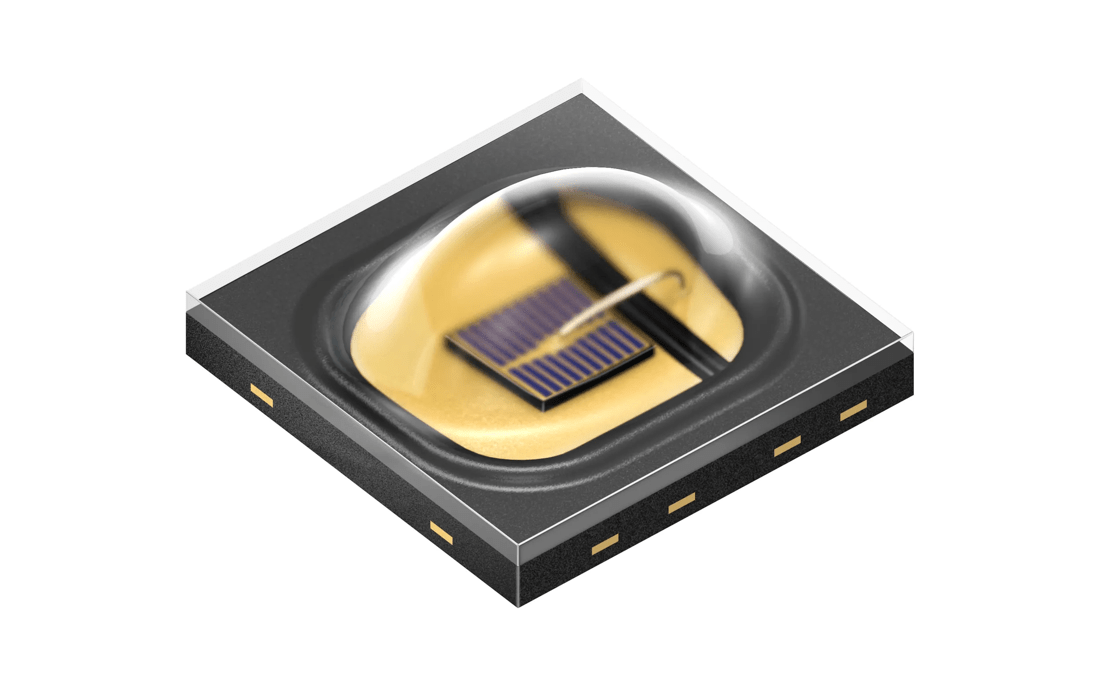

OSRAM OSLON® Black, SFH 47267AS A01

Description

OSLON Black Series (940 nm) - 110 ° x 135 ° High power infrared LED for In-Cabin Sensing applications like driver monitoring, occupant monitoring, interior monitoring, gesture sensing and child presence detection.

Datasheet

Select & order

Details

Parameters

Color of emission

Infrared (>800 nm)

Current

I_F

1000 mA

Peak wavelength

950 nm

Brightness

Φ_E

1280 mW

I_E

390 mW/sr

Beam angle

∢

110 °

∢

135 °

Dimension

3.75 mm

1.49 mm

Operating temperature

T_op min.

-40 °C

T_op max.

125 °C

Application fields

Automotive & mobility In-cabin sensing

Ordering codes

Product Type	Description	Order No.	Availability
SFH 47267AS A01	I_e = 355 ... 450 mW/sr, (I_e=390 mW/sr typ.) (I_F = 1000 mA)	Q65113A3916	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Farnell Buy now Mouser Buy now
