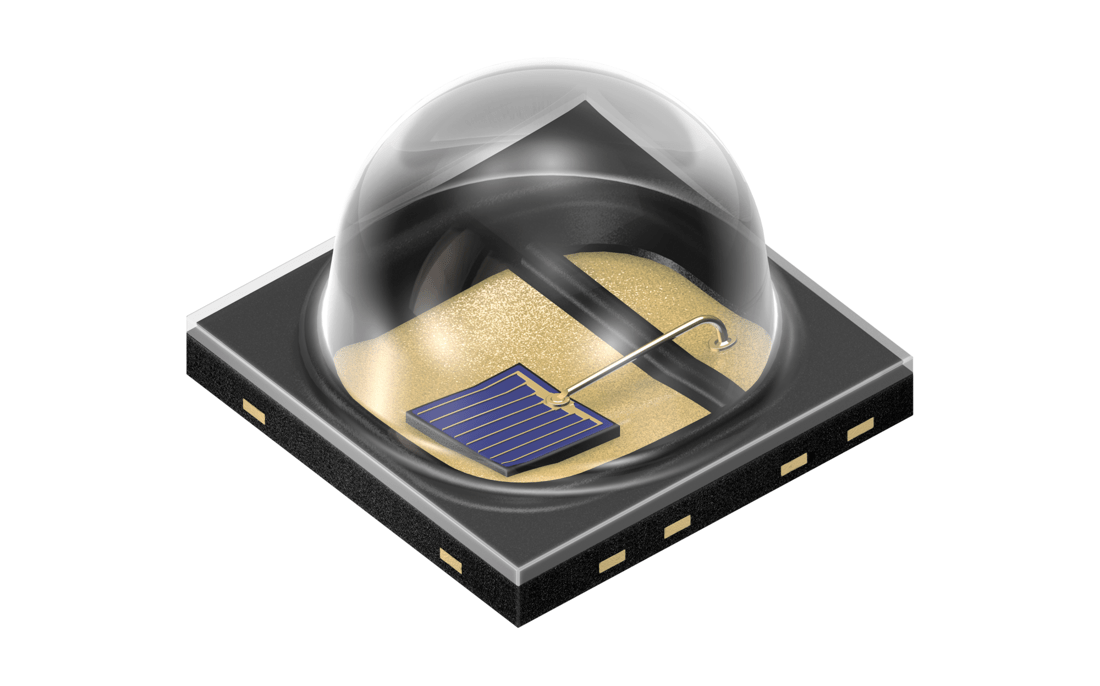

OSRAM OSLON™ Black, SFH 4728BS A01 T1

New
×
New

Description

OSLON Black Series (940 nm) Tilted emission angle in x: -15°, y: +30° High power infrared LED for In-Cabin Sensing applications like driver monitoring, occupant monitoring, interior monitoring, gesture sensing and child presence detection.
Datasheet
SFH 4728BS A01 T1
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
1000 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
1550 mW
IE
600 mW/sr
Beam angle
∢
53 °
∢
47 °
Dimension
l
3.75 mm
w
3.75 mm
h
2.94 mm
Operating temperature
Top min.
-40 °C
Top max.
125 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4728BS A01 T1-FA1FB1 Ie = 1120 ... 1600 mW/sr, (Ie=1320 mW/sr typ.) (IF = 1000 mA) Q65115A0472 Full production
