Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
20
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
12
mW
IE
25
mW/sr
Beam angle
∢
24
°
Dimension
l
4.5
mm
w
5.7
mm
h
2.3
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
IRL 81A | Ie = 7.1 ... 45.0 mW/sr, (Ie=25 mW/sr typ.) (IF = 20 mA) | Q68000A8000 | |
IRL 81A-RS | Ie = 11.2 ... 28.0 mW/sr, (Ie=25 mW/sr typ.) (IF = 20 mA) | Q65112A2269 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For other documents visit our
Download center
Application note
Eye safety of IREDs used in lamp applications
Product related
High-speed switching of IR-LEDs — Background and data sheet definition
Product related
Importing rayfiles and ray-measurement files of LEDs
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

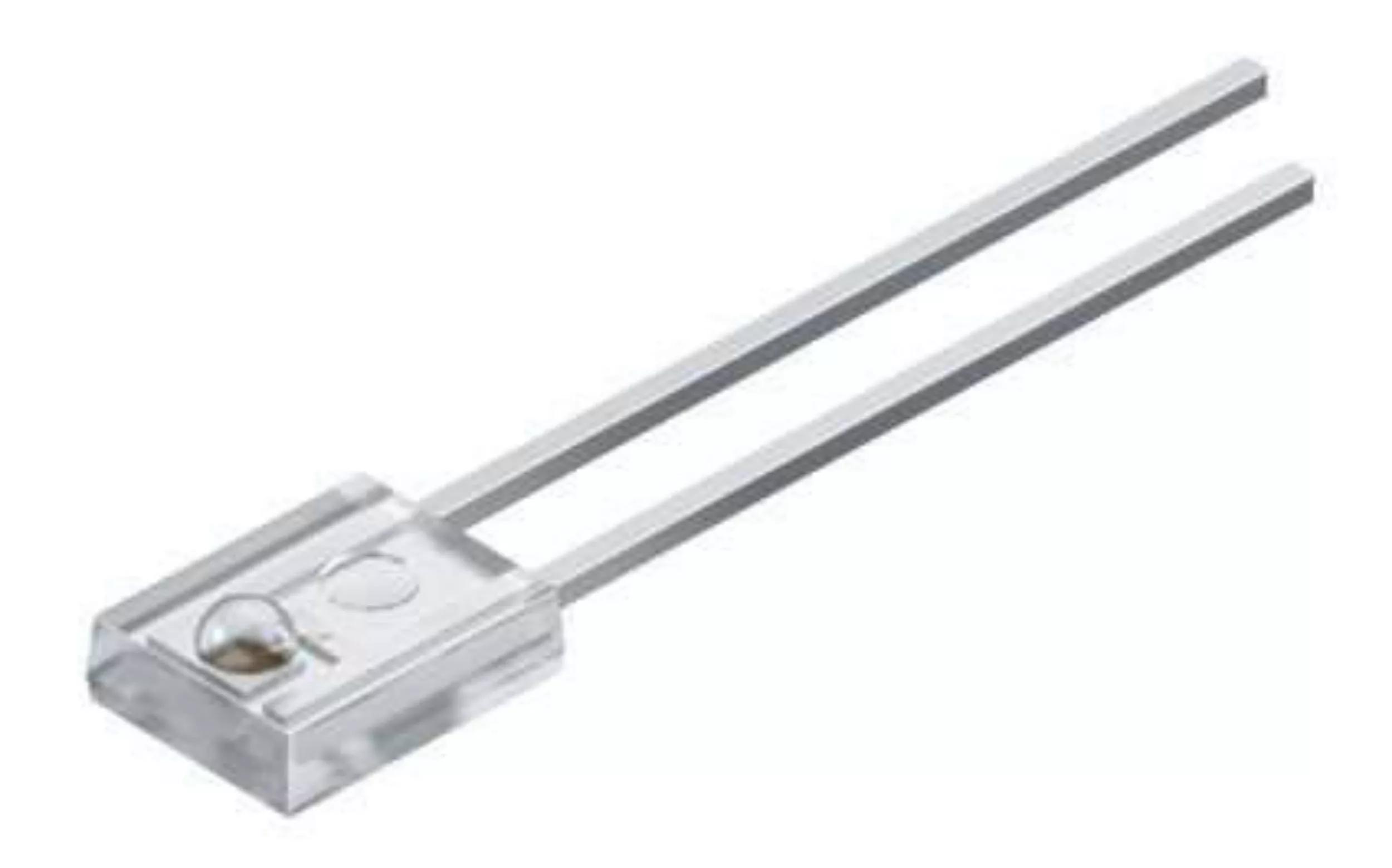

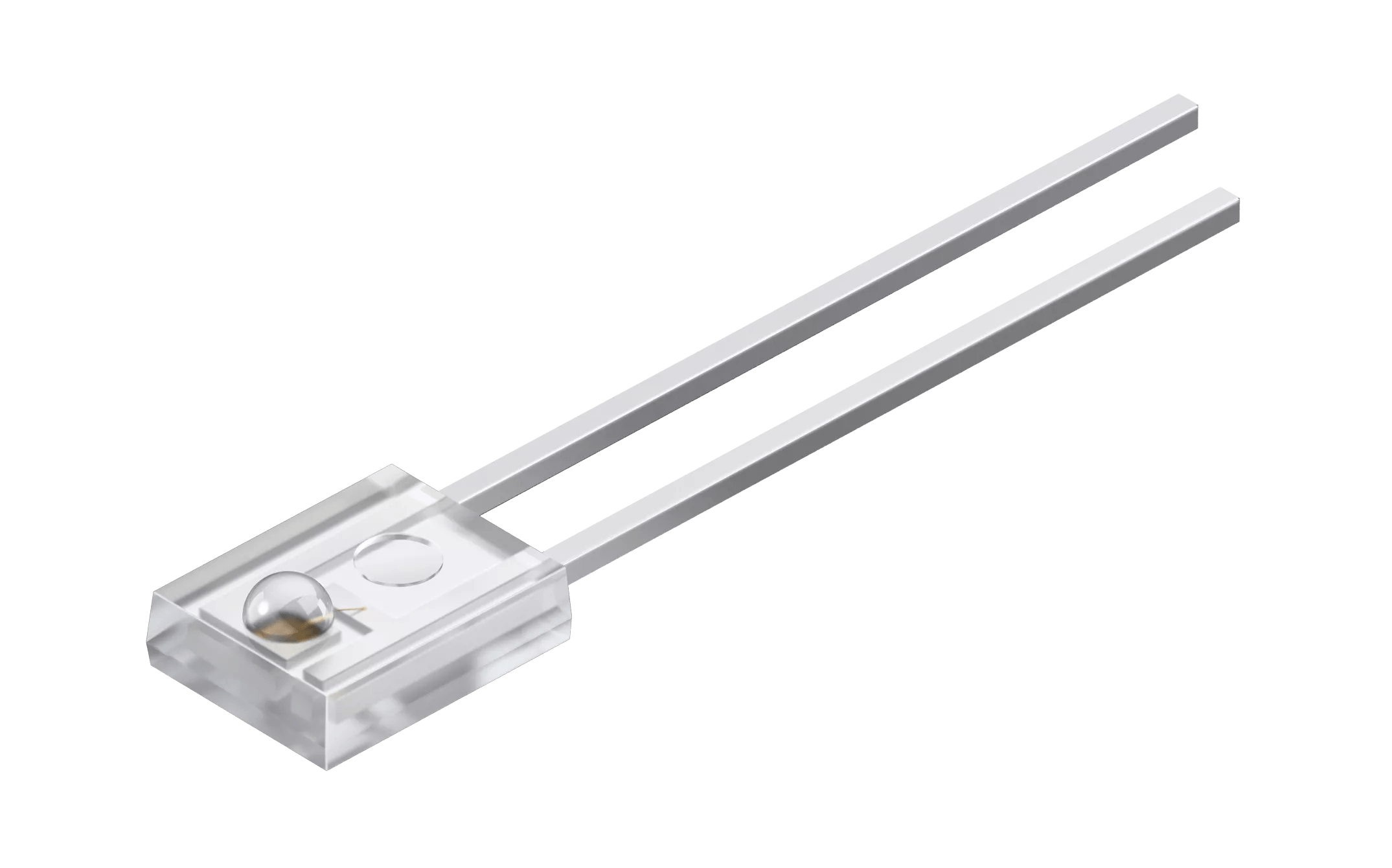

LPT80A_photo
