Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
λ
860
nm
Brightness
ΦE
70
mW
IE
270
mW/sr
Beam angle
∢
20
°
Dimension
l
5.7
mm
w
4.6
mm
h
7.4
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

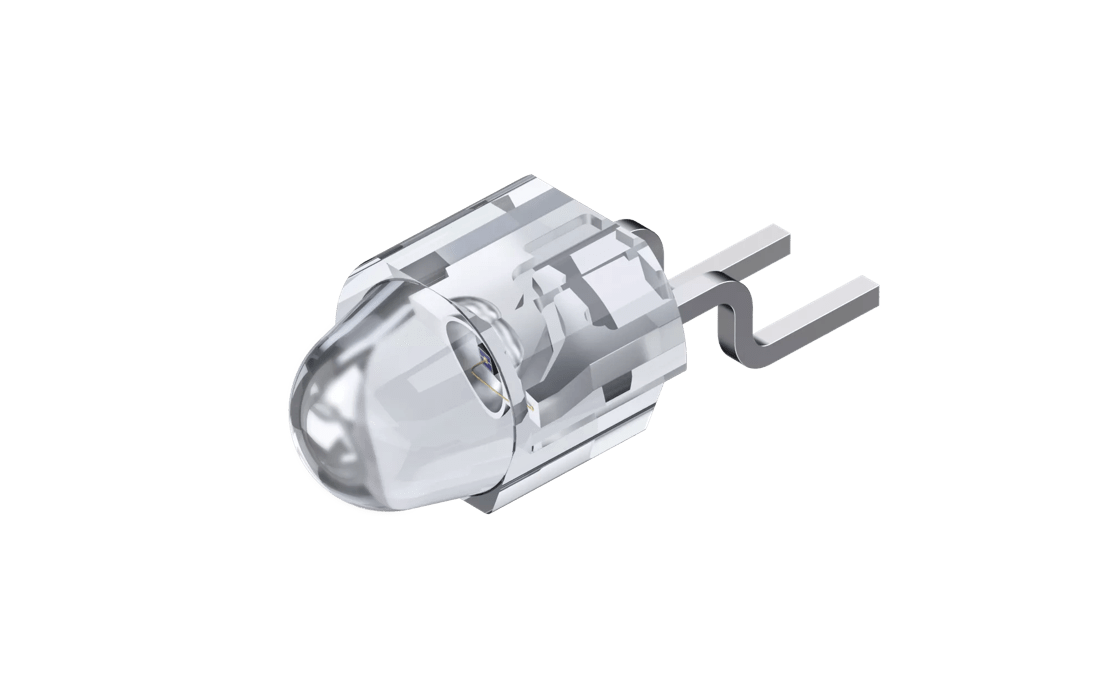

| SFH 4551 | Ie = 112 ... 450 mW/sr, (Ie=270 mW/sr typ.) (IF = 100 mA) | Q65111A0506 | |
| SFH 4551-BWCW | Ie = 180 ... 450 mW/sr, (Ie=270 mW/sr typ.) (IF = 100 mA) | Q65112A4144 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
