Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
λ
950
nm
Brightness
ΦE
75
mW
IE
550
mW/sr
Beam angle
∢
20
°
Dimension
l
5.5
mm
w
5.5
mm
h
8.2
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

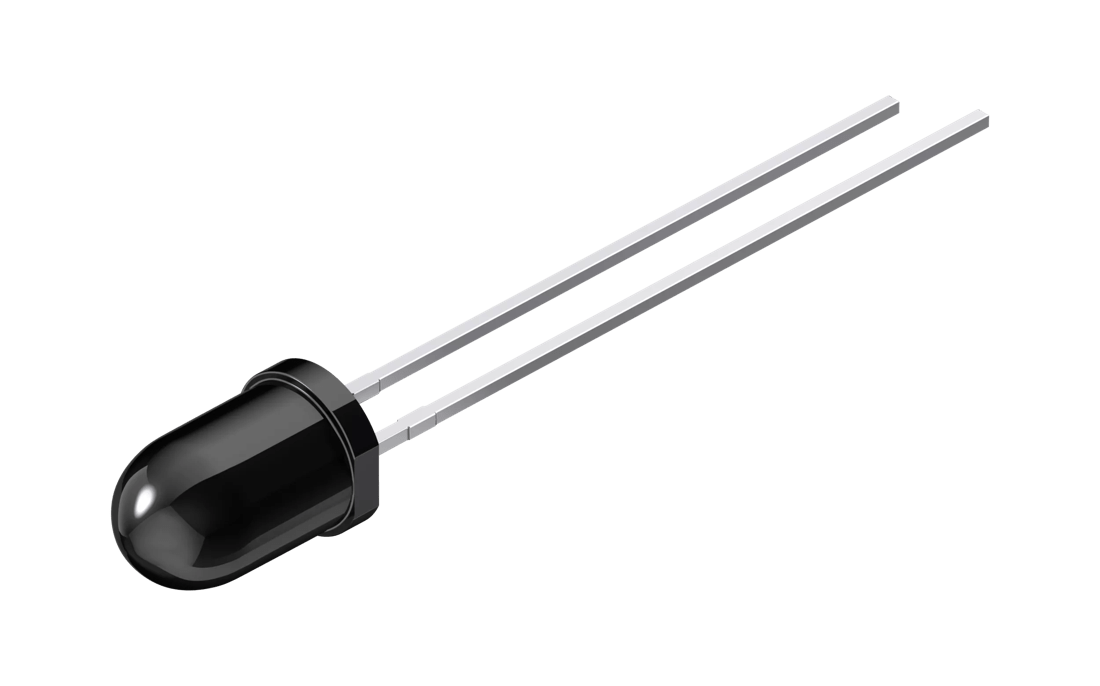

| SFH 4544 | Ie = 280 ... 1120 mW/sr, (Ie=550 mW/sr typ.) (IF = 100 mA) | Q65111A4886 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
