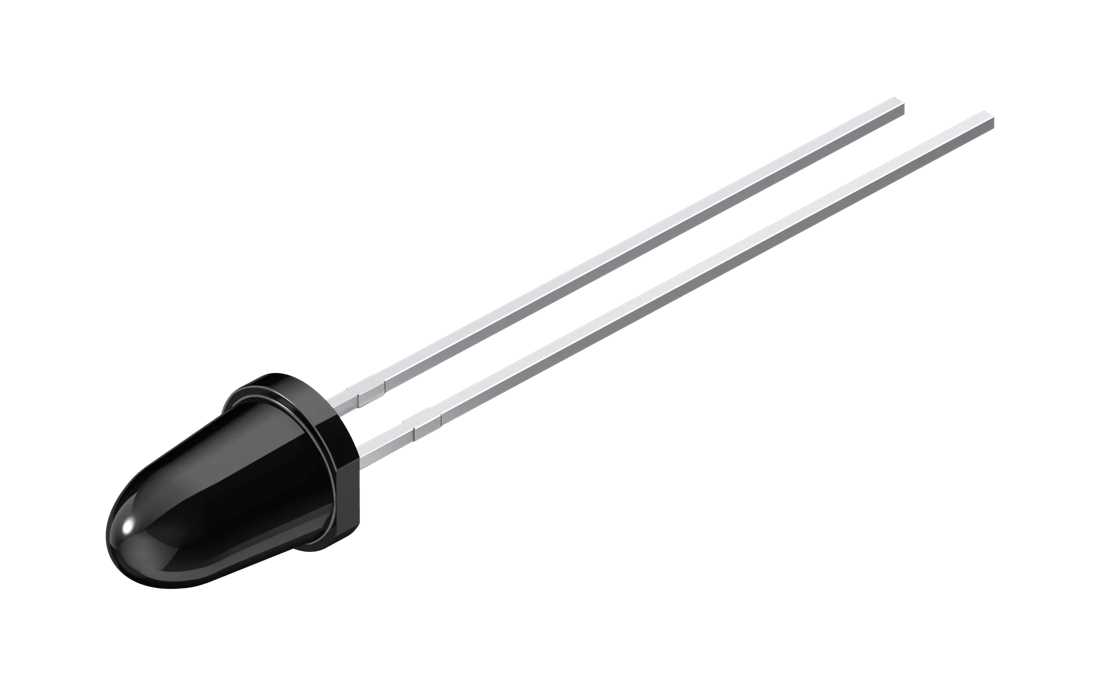

OSRAM Radial T1 3/4, SFH 4555

×

Description

Infrared Emitter (850 nm)

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
860 nm
Brightness
ΦE
60 mW
IE
550 mW/sr
Beam angle
10 °
Dimension
l
5.5 mm
w
5.5 mm
h
7.9 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 4555-CWDW Ie = 280 ... 710 mW/sr, (Ie=550 mW/sr typ.) (IF = 100 mA) Q65111A4744
SFH 4555 Ie = 180 ... 710 mW/sr, (Ie=550 mW/sr typ.) (IF = 100 mA) Q65110A7341
