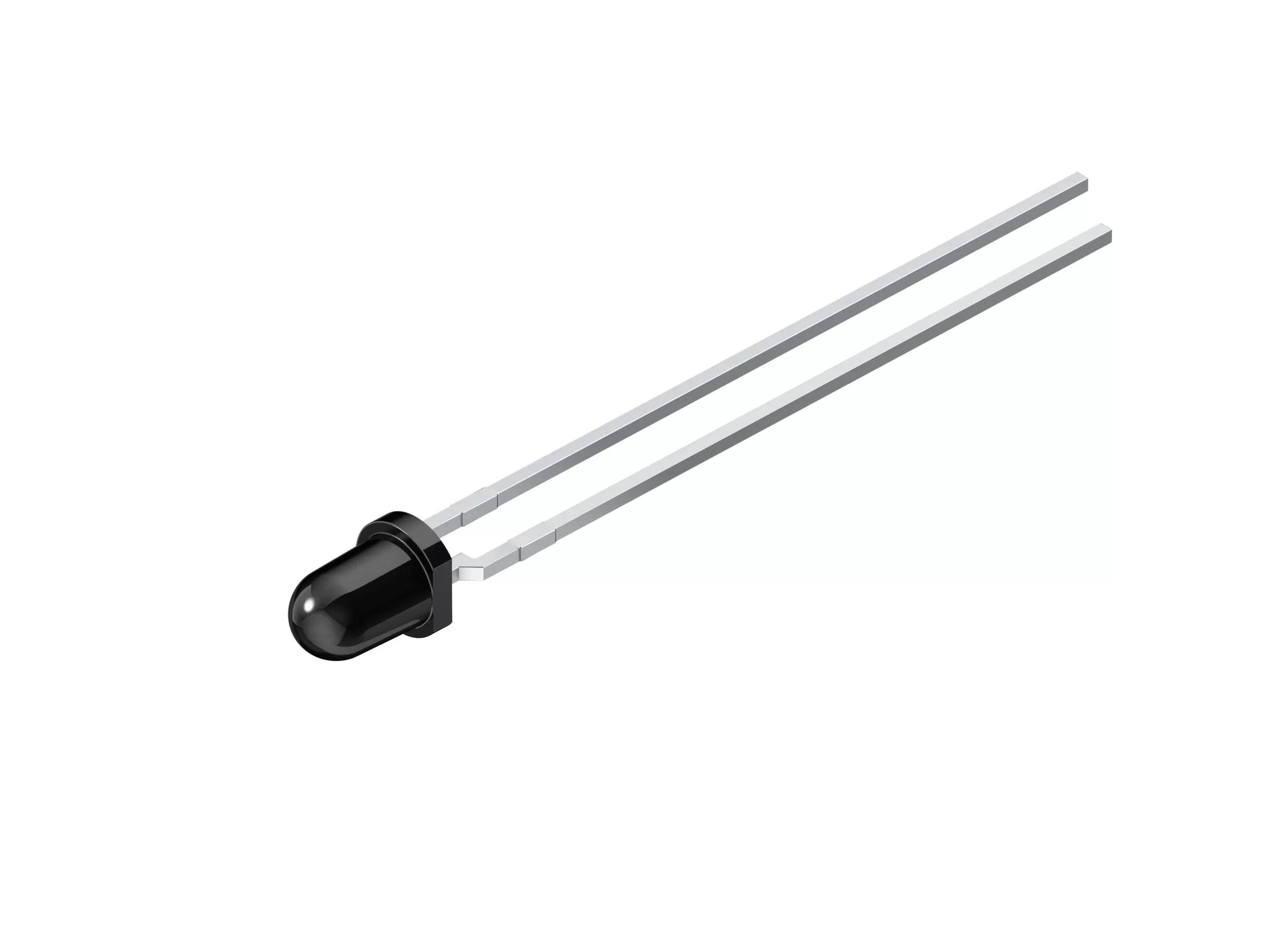

OSRAM Radial T1, SFH 4346

Discontinued
×
Discontinued

Description

Infrared Emitter (940 nm)
Datasheet
SFH 4346
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Current
IF
100 mA
Peak wavelength
λ
950 nm
Brightness
ΦE
80 mW
IE
90 mW/sr
Beam angle
∢
40 °
Dimension
l
3.8 mm
w
3.8 mm
h
3.9 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering information

Product Type Description Ordering code Availability
SFH 4346 Ie = 45 ... 280 mW/sr, (Ie=90 mW/sr typ.) (IF = 100 mA) Q65111A6137 Discontinued
SFH 4346-UV Ie = 45 ... 112 mW/sr, (Ie=90 mW/sr typ.) (IF = 100 mA) Q65112A4347 Discontinued

Downloads

Datasheets
SFH 4346 · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
Tape and reel information — Radial components · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
