Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
Ī»
860
nm
Brightness
Ī¦E
25
mW
IE
9
mW/sr
Beam angle
ā¢
120
Ā°
Dimension
l
5.2
mm
w
2.8
mm
h
1.9
mm
Operating temperature
Top
min.
-40
Ā°C
Top
max.
100
Ā°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

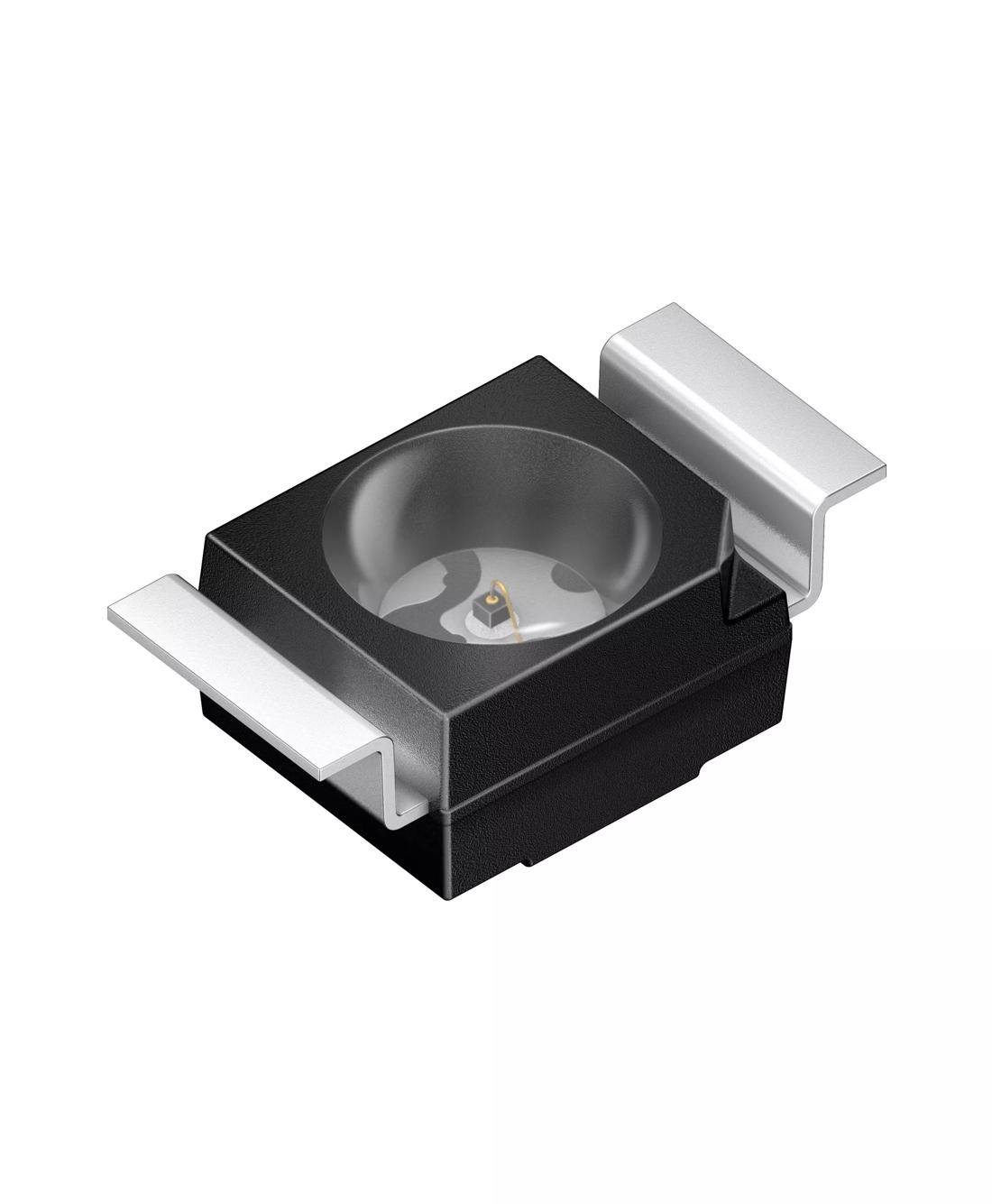

| SFH 4257R | Ie = 7.1 ... 18.0 mW/sr, (Ie=9 mW/sr typ.) (IF = 100 mA) | Q65111A2395 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
| SFH 4257R-Q-Z | Ie = 7.1 ... 11.2 mW/sr, (Ie=9 mW/sr typ.) (IF = 100 mA) | Q65110A8706 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
RS
Buy now
|
