Details
Parameters
Color of emission
Infrared (>800 nm)
Current
IF
100
mA
Peak wavelength
λ
950
nm
Brightness
ΦE
65
mW
IE
100
mW/sr
Beam angle
∢
24
°
Dimension
l
5.2
mm
w
2.8
mm
h
1.9
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

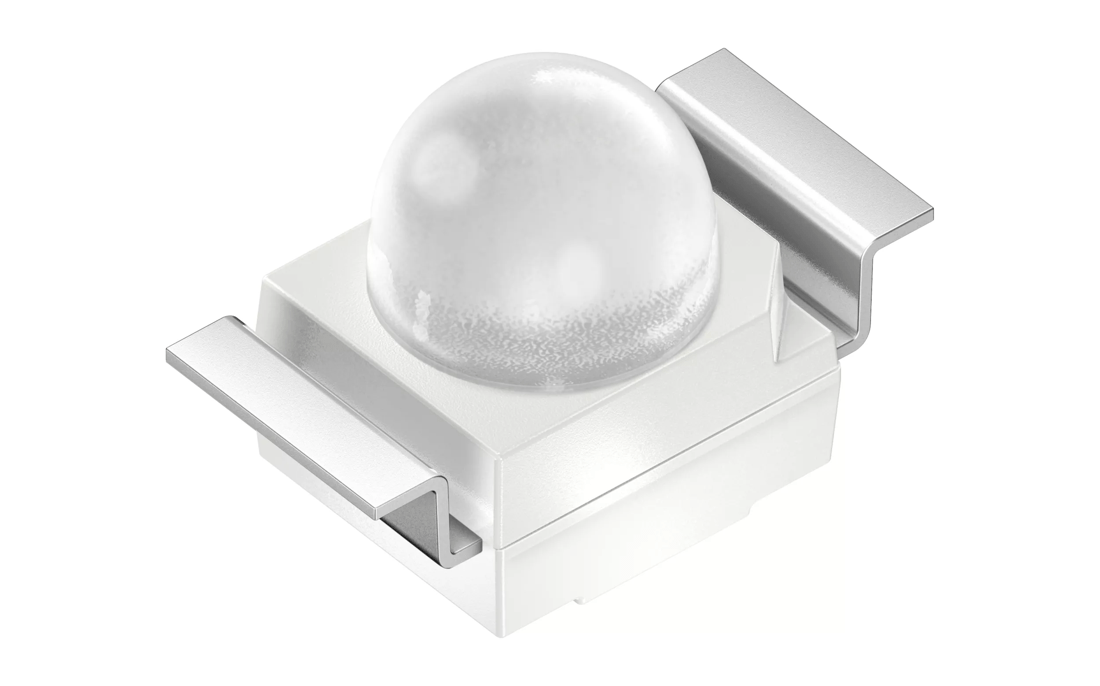

| SFH 4246R | Ie = 71 ... 180 mW/sr, (Ie=100 mW/sr typ.) (IF = 100 mA) | Q65112A8834 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
