OSRAM LED ENGIN LuxiGen®, LZ1-10DB00

OSRAM LED ENGIN LuxiGen®, LZ1-10DB00
×

Description

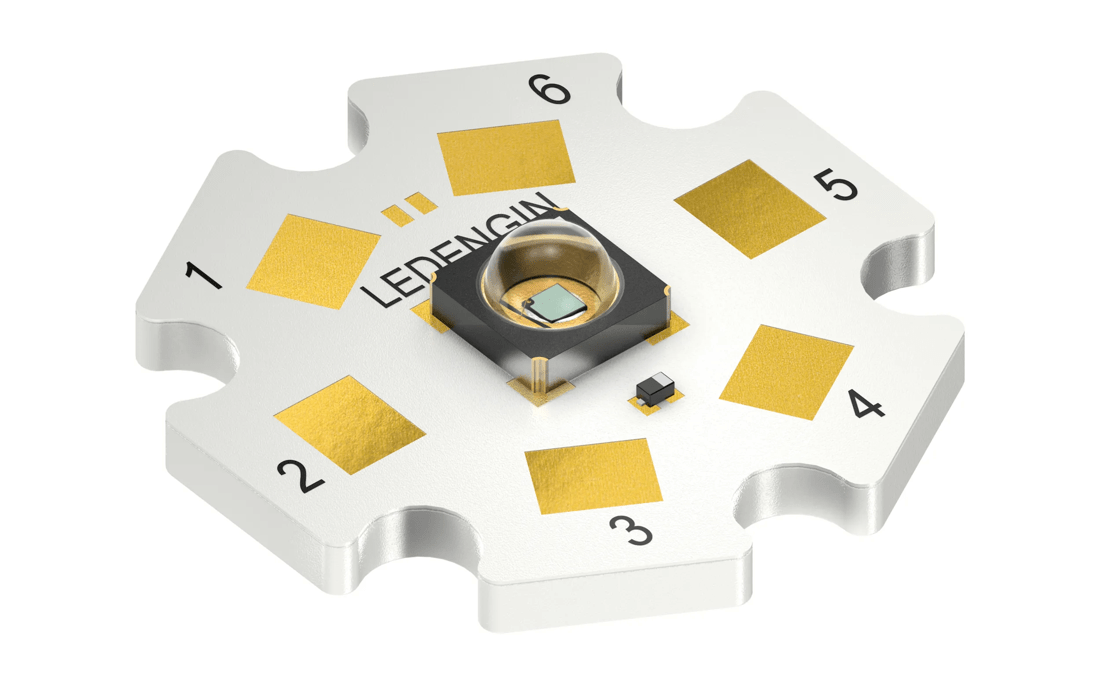

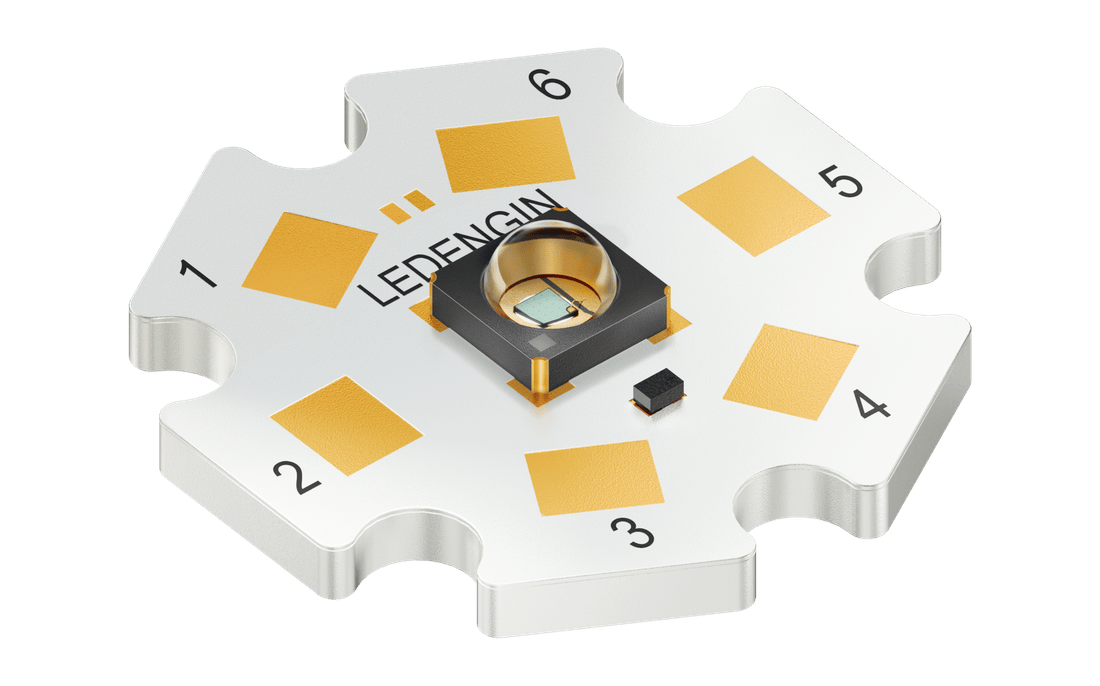

LZ1 Emitter on MCPCBFor emitter specification, please refer to the emitter datasheet LZ1-00DB00.
Datasheet
LZ1-10DB00
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
3.6 W
High
Brightness
ΦE
1100 mW
Beam angle
∢
80 °
Operating temperature
Top min.
-40 °C
Top max.
150 °C
Dimension
l
19.9 mm
w
19.9 mm
h
4.4 mm

Ordering codes

Product Type Description Order No. Availability
LZ1-10DB00-0100 ΦE = 800 ... 1250 mW (IF = 1000 mA) Q65113A2977
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
