OSRAM LED ENGIN LuxiGen®, LZ1-10R302

OSRAM LED ENGIN LuxiGen®, LZ1-10R302
×

Description

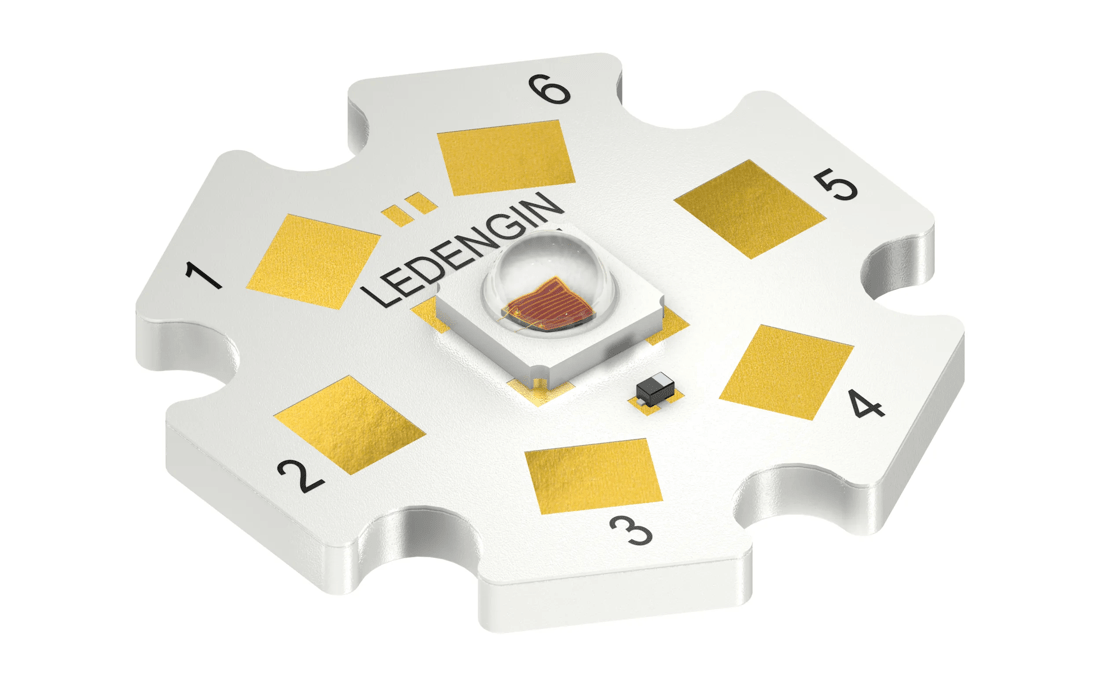

LZ1 Emitter on MCPCBFor emitter specification, please refer to the emitter datasheet LZ1-00R302.
Datasheet
LZ1-10R302
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Far Red (720-740 nm)
Electrical power
2.5 W
High
Brightness
ΦE
900 mW
Beam angle
∢
100 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
19.9 mm
w
19.9 mm
h
4.1 mm

Ordering codes

Product Type Description Order No. Availability
LZ1-10R302-0000 ΦE = 800 ... 1250 mW (IF = 1000 mA) Q65113A2979
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
