OSRAM LED ENGIN LuxiGen®, LZ1-10R702

×

Description

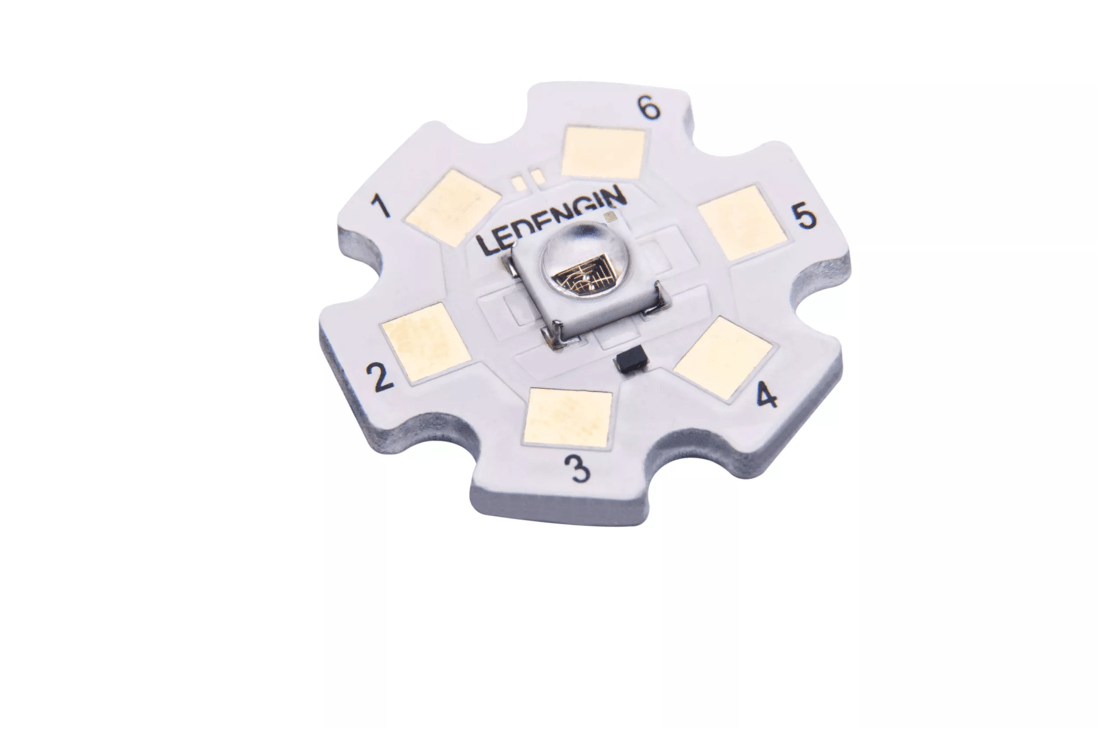

LZ1 Emitter on MCPCBFor emitter specification, please refer to the emitter datasheet LZ1-00R702.

Details

Parameters

Color of emission
Infrared (>800 nm)
Electrical power
3.0 W
High
Brightness
ΦE
1350 mW
Beam angle
90 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
19.9 mm
w
19.9 mm
h
4.1 mm

Ordering codes

Product Type Description Order No. Availability
LZ1-10R702-0000 ΦE = 950 ... 1600 mW (IF = 1000 mA) Q65113A2984
