OSRAM LED ENGIN LuxiGen®, LZ4-V0UBH0

Name: OSRAM LED ENGIN LuxiGen®, LZ4-V0UBH0
Brand: ams-OSRAM AG

Description

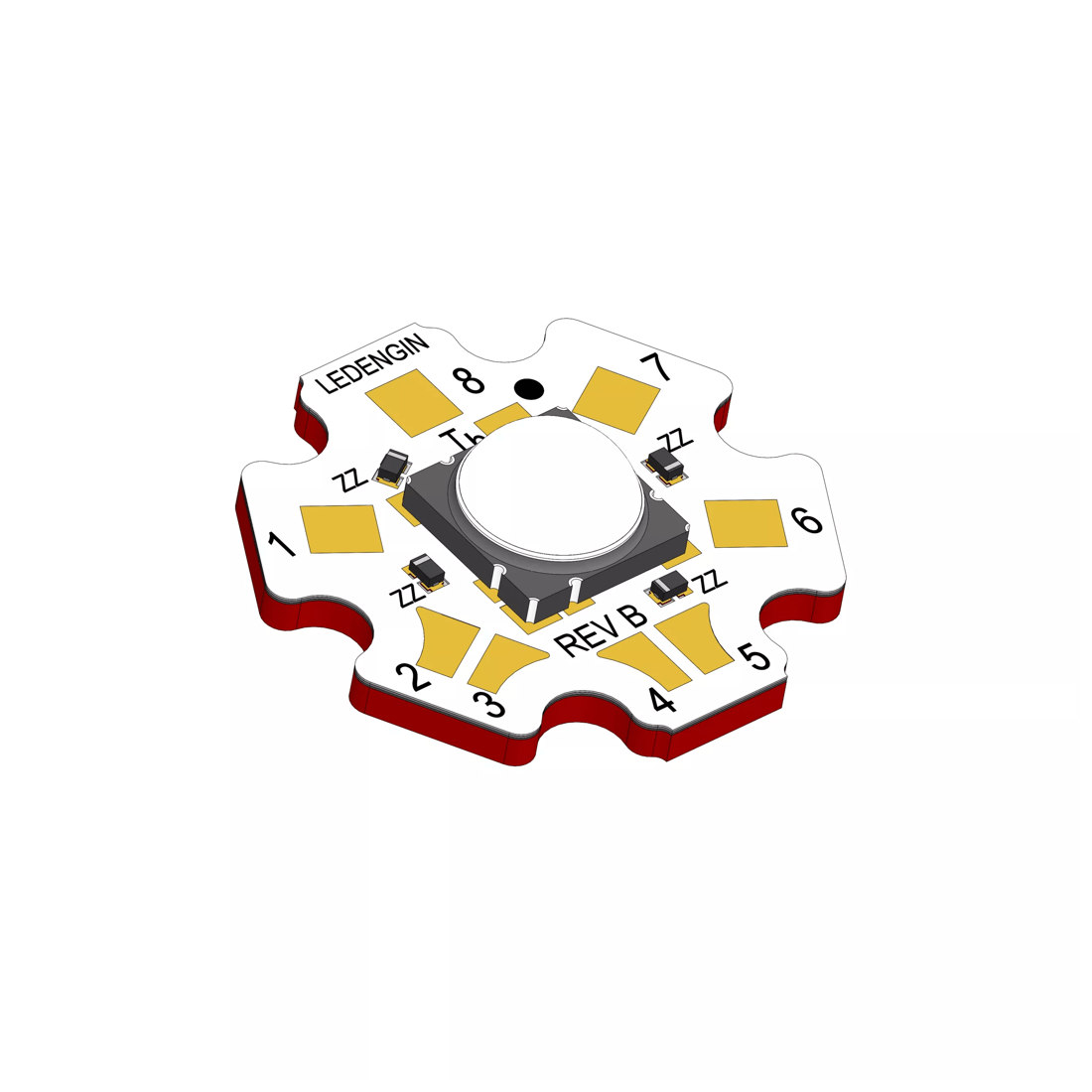

LZ4 Emitter on 4-Channel Star MCPCBFor emitter specification, please refer to the emitter datasheet LZ4-00UBH0.

Datasheet

Select & order

Details

Parameters

Color of emission

Violet (380-440 nm)

Electrical power

9.8 W

Ultra High

Beam angle

∢

110 °

Operating temperature

T_op min.

-40 °C

T_op max.

130 °C

Dimension

19.9 mm

5.4 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Medical & health Medical imaging Digital diagnostic devices

Lighting Indoor lighting Entertainment Agriculture & horticulture

Ordering codes

Product Type	Description	Order No.	Availability
LZ4-V0UBH0-00U4	Φ_E = 4.8 ... 7.5 W (I_F = 700 mA)	Q65113A4210	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now
LZ4-V0UBH0-00U8	Φ_E = 4.8 ... 7.5 W (I_F = 700 mA)	Q65113A4208	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now
LZ4-V0UBH0-00U5	Φ_E = 4.8 ... 7.5 W (I_F = 700 mA)	Q65113A4206	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Farnell Buy now Mouser Buy now
