OSRAM LED ENGIN LuxiGen®, LZC-C4UB0R

Name: OSRAM LED ENGIN LuxiGen®, LZC-C4UB0R
Brand: ams-OSRAM AG

Discontinued

Description

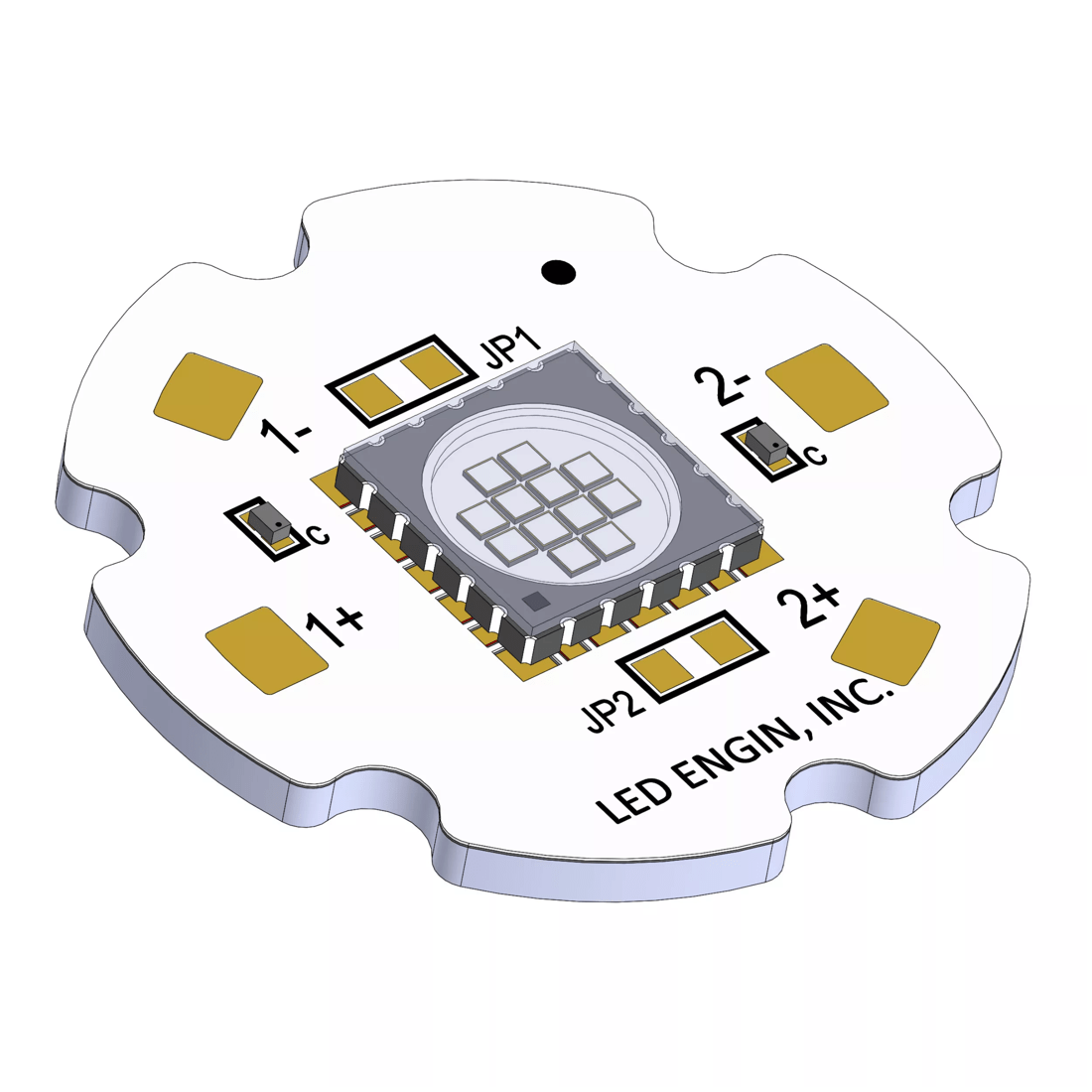

LZC Emitter on 2-Channel MCPCBFor emitter specification, please refer to the emitter datasheet LZC-04UB0R.

Datasheet

Select & order

Details

Parameters

Color of emission

Violet (380-440 nm)

Electrical power

29.0 W

Ultra High

Brightness

Φ_E

12300 mW

Beam angle

∢

115 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

28.3 mm

3.15 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Medical & health Medical imaging Digital diagnostic devices

Lighting Indoor lighting Entertainment Agriculture & horticulture

Ordering codes

Product Type	Description	Order No.	Availability
LZC-C4UB0R-00U5	Φ_E = 9.5 ... 15.0 W (I_F = 700 mA)	Q65113A3041	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
LZC-C4UB0R-00U8	Φ_E = 9.5 ... 15.0 W (I_F = 700 mA)	Q65113A3042	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now Rochester Buy now
LZC-C4UB0R-00U4	Φ_E = 9.5 ... 15.0 W (I_F = 700 mA)	Q65113A3040	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now Rochester Buy now
