OSRAM LED ENGIN LuxiGen™, LZP-D4UB0R

Discontinued
×
Discontinued

Description

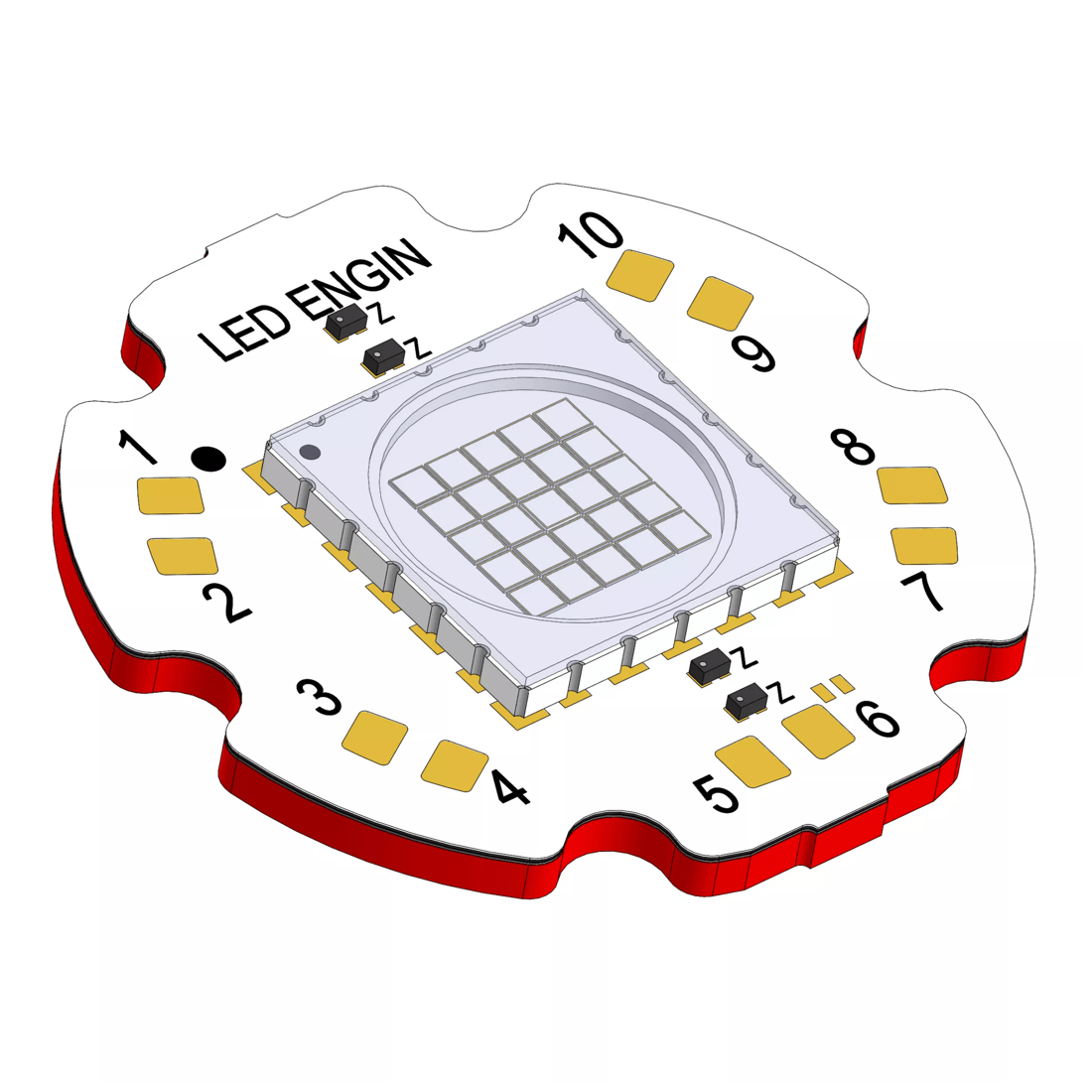

LZP Emitter on Cu Star MCPCBFor emitter specification, please refer to the emitter datasheet LZP-04UB0R.
Datasheet
LZP-D4UB0R
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Violet (380-440 nm)
Electrical power
16.0 W
16.0 W
16.0 W
16.0 W
Ultra High
Ultra High
Ultra High
Ultra High
Brightness
ΦE
22500 mW
Beam angle
∢
115 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
28.3 mm
w
28.3 mm
h
3.13 mm

Ordering information

Product Type Description Ordering code Availability
LZP-D4UB0R-00U4 ΦE = 3.8 ... 7.5 W (IF = 700 mA) Q65113A3058 Discontinued
LZP-D4UB0R-00U5 ΦE = 3.8 ... 7.5 W (IF = 700 mA) Q65113A3057 Discontinued
LZP-D4UB0R-00U8 ΦE = 3.8 ... 7.5 W (IF = 700 mA) Q65113A3056 Discontinued

Downloads

Datasheets
LZP-D4UB0R · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
