OSRAM LED ENGIN LuxiGen®, LZP-L0MD00

×

Description

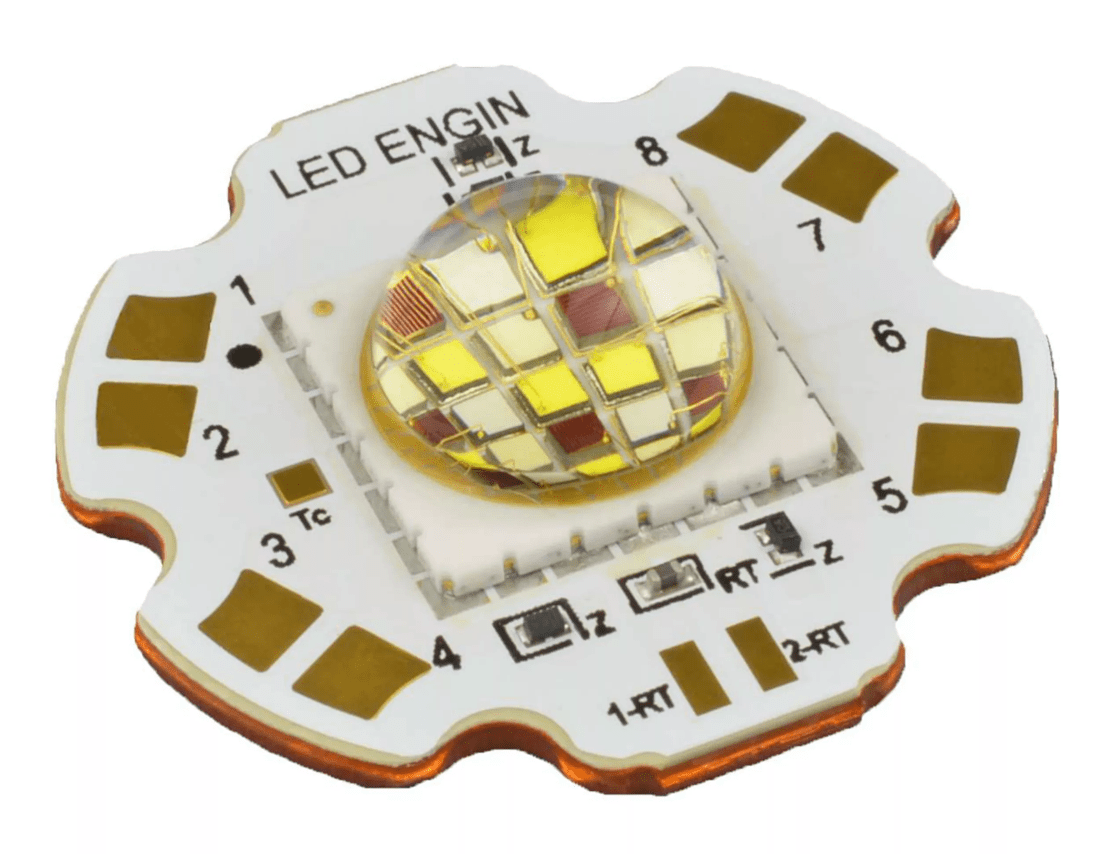

LZP Emitter on 4-Channel Star MCPCBFor emitter specification, please refer to the emitter datasheet LZP-00MD00.

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
White
Electrical power
11.0 W
15.0 W
13.0 W
16.0 W
Ultra High
Ultra High
Ultra High
Ultra High
Brightness
ΦV
765 lm
Beam angle
125 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
28.3 mm
w
28.3 mm
h
10.1 mm

Ordering codes

Product Type Description Order No. Availability
LZP-L0MD00-0000_G2 ΦV = 600 ... 940 lm (IF□=□700□mA)
ΦV = 1090 ... 1700 lm (IF□=□700□mA)
ΦV = 172 ... 420 lm (IF□=□700□mA)
ΦV = 1250 ... 1960 lm (IF□=□700□mA)
Q65113A6964
