OSRAM DISPLIX™ E2525, KRTBRHLQ91.32

Discontinued
×
Discontinued

Description

This device is especially designed for intra-glass displays. The 4-lead (common anode) technology allows for an additive mixture of color stimuli by independent driving of each chip. As a result this device is the ideal component to create amazing media-enabled glass facades ranging from conference room walls to huge glass facades.
Datasheet
KRTB RHLQ91.32
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.011 W
0.015 W
0.016 W
Low
Low
Low
Brightness
ΦV
0.831 lm
IV
0.258 cd
ΦE
3.89 mW
IE
1.21 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
2.5 mm
w
2.5 mm
h
1.4 mm

Ordering information

Product Type Description Ordering code Availability
KRTBRHLQ91.32-SESI-GQ+UGVC-HU+QJRH-13 ● Iv = 201 ... 315 mcd (IF = 6 mA)
● Iv = 560 ... 900 mcd (IF = 6 mA)
● Iv = 106 ... 190 mcd (IF = 6 mA) 		Q65112A9209 Discontinued

Downloads

Datasheets
KRTB RHLQ91.32 · Datasheet · PDF · en_US

Application note
Potting protection for outdoor LED video walls and signs · Product related · PDF · en_US
Advanced LED rework procedure for video wall and signage application · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

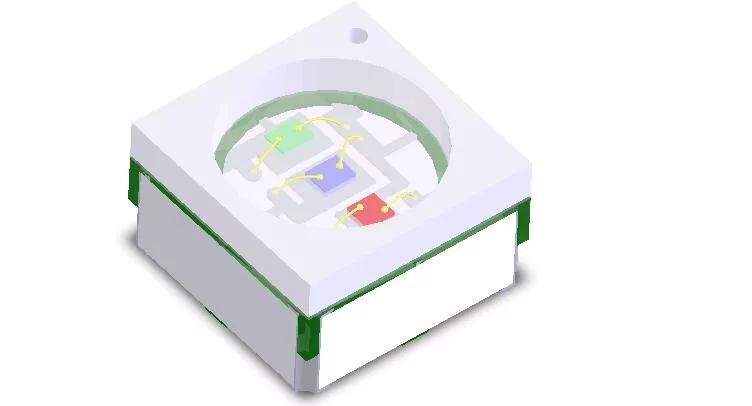

Productpicture_b00667_20181016-1 · Images · JPG
