OSRAM DISPLIX™ P2828, KRTBLFLP71.32

×

Description

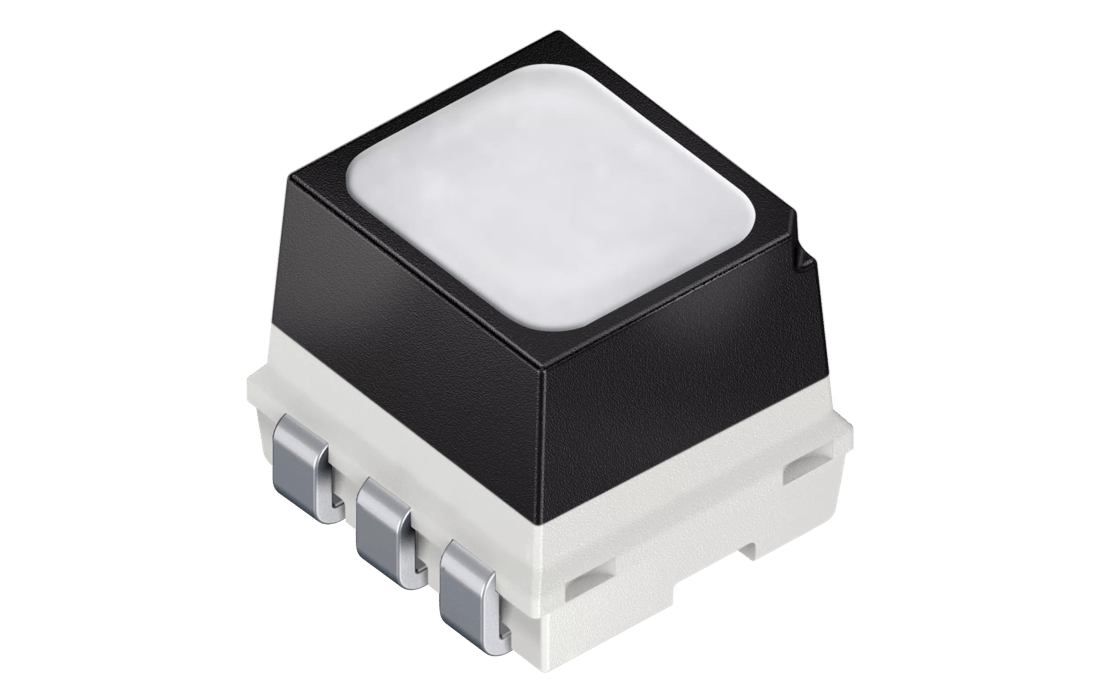

This device is especially designed for full color video walls. The 6-lead technology allows for an additive mixture of color stimuli by independent driving of each chip. Very compact package size fits best for high resolution narrow pitch video walls.
Datasheet
KRTB LFLP71.32
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.032 W
0.025 W
0.028 W
Low
Low
Low
Brightness
ΦV
2.04 lm
IV
0.715 cd
ΦE
9.07 mW
IE
3.18 mW/sr
Beam angle
∢
110 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
2.8 mm
w
2.8 mm
h
2.49 mm

Ordering information

Product Type Description Ordering code Availability
KRTBLFLP71.32-UVUZ-GP+VYAU-JS+SVSZ-SZ ● Iv = 529 ... 900 mcd (IF = 15 mA)
● Iv = 1000 ... 1692 mcd (IF = 10 mA)
● Iv = 212 ... 355 mcd (IF = 10 mA) 		Q65112A9639 Full production
