OSRAM DISPLIX™ P3333, KRTBLSLPS1.32

×

Description

This device is especially designed for full color RGB applications. The 6-lead technology allows for an additive mixture of color stimuli by independent driving of each chip.
Datasheet
KRTB LSLPS1.32
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.043 W
0.053 W
0.057 W
Low
Low
Low
Brightness
ΦV
2.93 lm
IV
1.03 cd
ΦE
16.2 mW
IE
5.67 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.4 mm
w
3.3 mm
h
1.8 mm

Ordering information

Product Type Description Ordering code Availability
KRTBLSLPS1.32-VUVY-EQ+BTBV-D8+TXUV-L1-B ● Iv = 800 ... 1323 mcd (IF = 20 mA)
● Iv = 1902 ... 2800 mcd (IF = 20 mA)
● Iv = 377 ... 710 mcd (IF = 20 mA) 		Q65113A7710 Full production

Downloads

Datasheets
KRTB LSLPS1.32 · Datasheet · PDF · en_US

Application note
Potting protection for outdoor LED video walls and signs · Product related · PDF · en_US
Advanced LED rework procedure for video wall and signage application · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

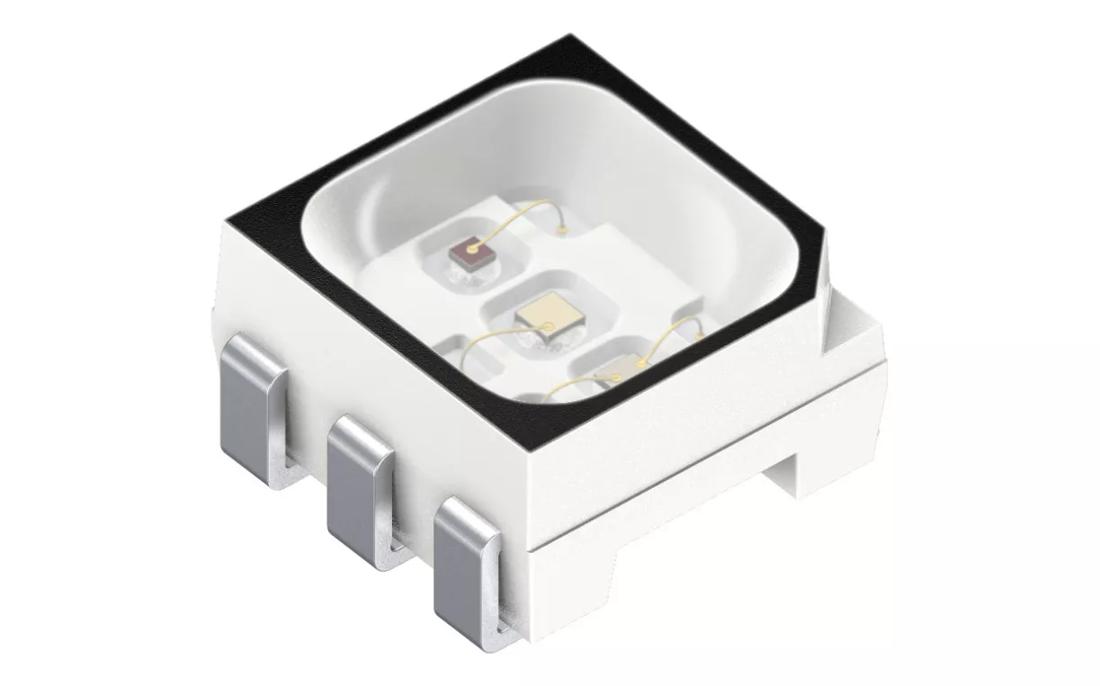

osram-dam-5371573_KRTB_LSLPS1 · Images · JPG
