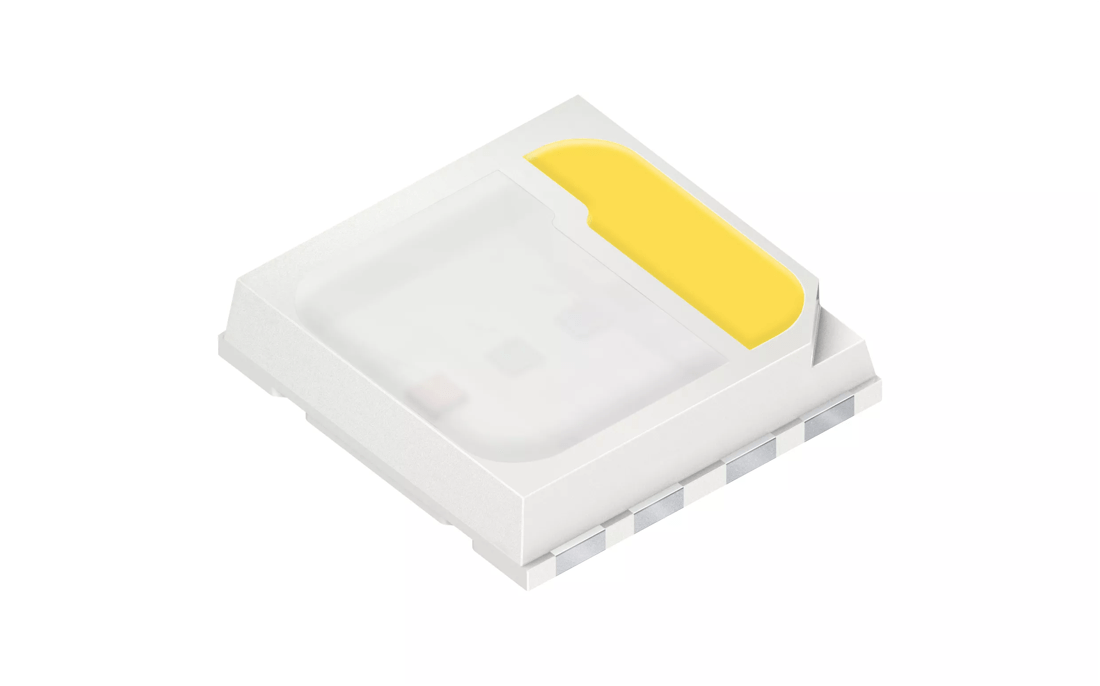

OSRAM DURIS™ E 5050, GW J9LHS2.4M

×

Description

This 5050 RGBW device is the first 4-in-1 color package for general lighting applications from ams OSRAM. It features industry-compatible performance and form factor and promises outstanding reliability for customers. Each chip is individually controlled to enable high customization color options along with tight wavelength and color binning for excellent homogeneity.
Datasheet
GW J9LHS2.4M
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Green (565-575 nm)
Blue (450-480 nm)
White
Electrical power
0.21 W
0.3 W
0.31 W
0.29 W
Mid
Mid
Mid
Mid
Brightness
ΦV
9.46 lm
IV
3.15 cd
ΦE
105 mW
IE
34.9 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
50.0 mm
w
50.0 mm
h
11.0 mm

Ordering information

Product Type Description Ordering code Availability
GW J9LHS2.4M-C0C7-2+35+13+30AW-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 1800 ... 4500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 3000 K 		Q65113A4660 Full production
GW J9LHS2.4M-C0C7-2+35+13+35AW-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 1800 ... 4500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 3500 K 		Q65113A4656 Full production
GW J9LHS2.4M-C0C7-2+35+13+40AW-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 1800 ... 4500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 4000 K 		Q65113A4657 Full production
GW J9LHS2.4M-C0C7-2+35+13+50AW-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 1800 ... 4500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 5000 K 		Q65113A4658 Full production
GW J9LHS2.4M-C0C7-2+35+13+57AW-1 ● Iv = 4500 ... 10500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA)
● Iv = 1800 ... 4500 mcd (IF = 100 mA)
● Iv = 8500 ... 17500 mcd (IF = 100 mA), 5700 K 		Q65113A4659 Full production
