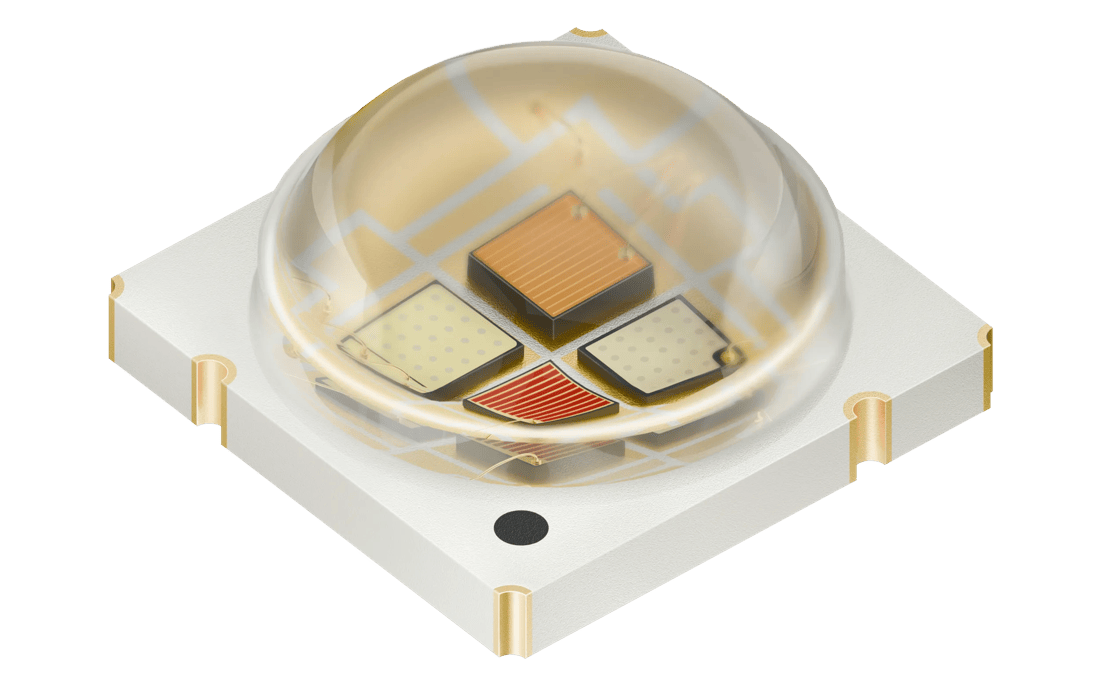

OSRAM LED ENGIN LuxiGen®, LZ4-00MA08

OSRAM LED ENGIN LuxiGen®, LZ4-00MA08
OSRAM LED ENGIN LuxiGen®, LZ4-00MA08
OSRAM LED ENGIN LuxiGen®, LZ4-00MA08
×

Description

Industry's most robust high power ceramic package with glass lens for high performance over life.
Datasheet
LZ4-00MA08
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Yellow (580-595 nm)
Electrical power
1.7 W
2.0 W
2.1 W
1.8 W
High
High
High
High
Brightness
ΦV
39 lm
Beam angle
∢
95 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
7.0 mm
w
7.0 mm
h
3.75 mm

Ordering codes

Product Type Description Order No. Availability
LZ4-00MA08-0000_G2 ● ΦV = 105 ... 160 lm (IF□=□700□mA)
● ΦV = 182 ... 285 lm (IF□=□700□mA)
● ΦV = 30 ... 74 lm (IF□=□700□mA)
● ΦV = 105 ... 166 lm (IF□=□700□mA) 		Q65113A6765
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
