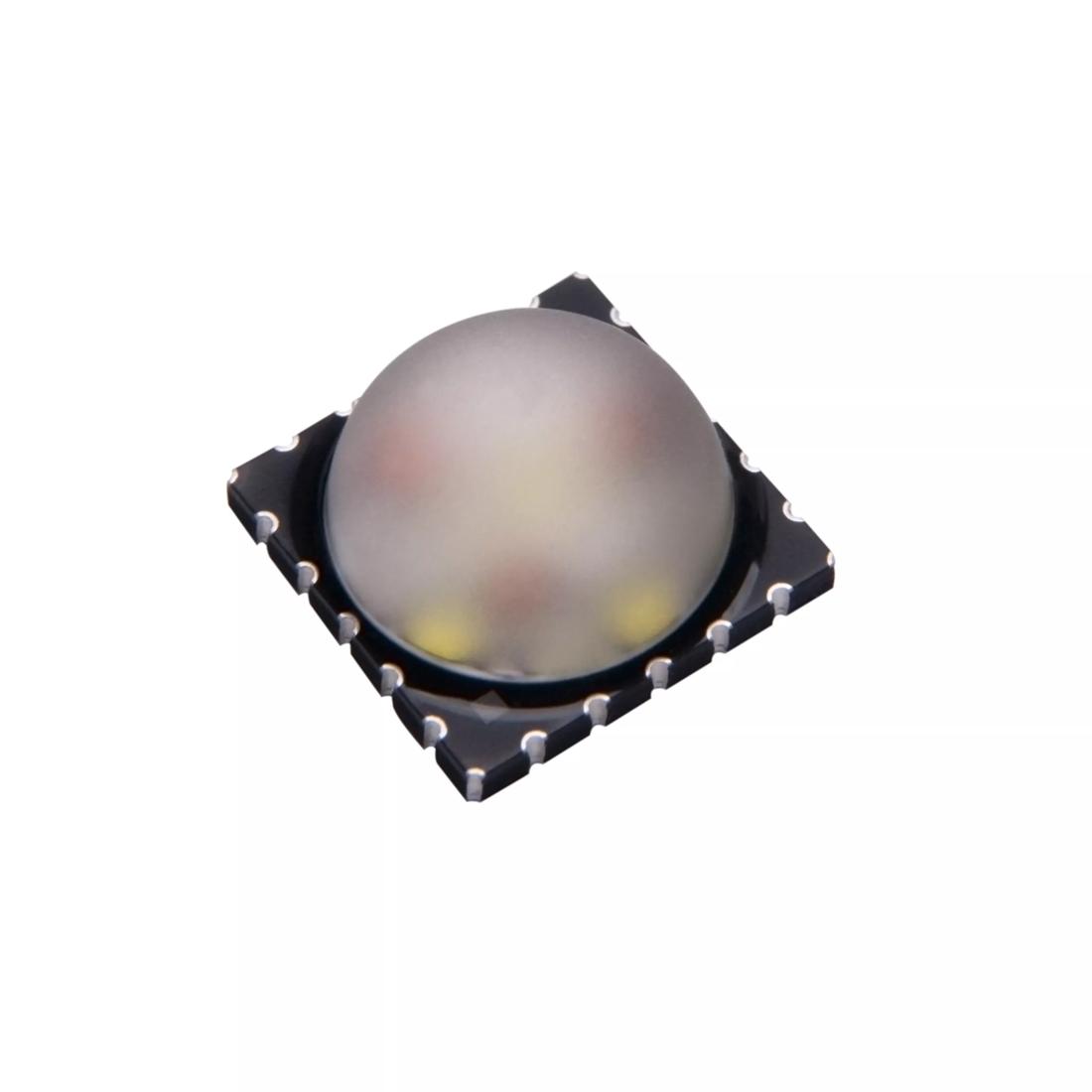

Details
Parameters
Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
White
Electrical power
5.4
W
6.2
W
6.6
W
7.6
W
High
Ultra High
Ultra High
Ultra High
Brightness
ΦV
100
lm
Beam angle
∢
95
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
9
mm
w
9
mm
h
5.4
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LZC-03MD07-0000_G2 |
|
Q65113A6849 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
