OSRAM Multi Chip LED, LRTBR48G

×

Description

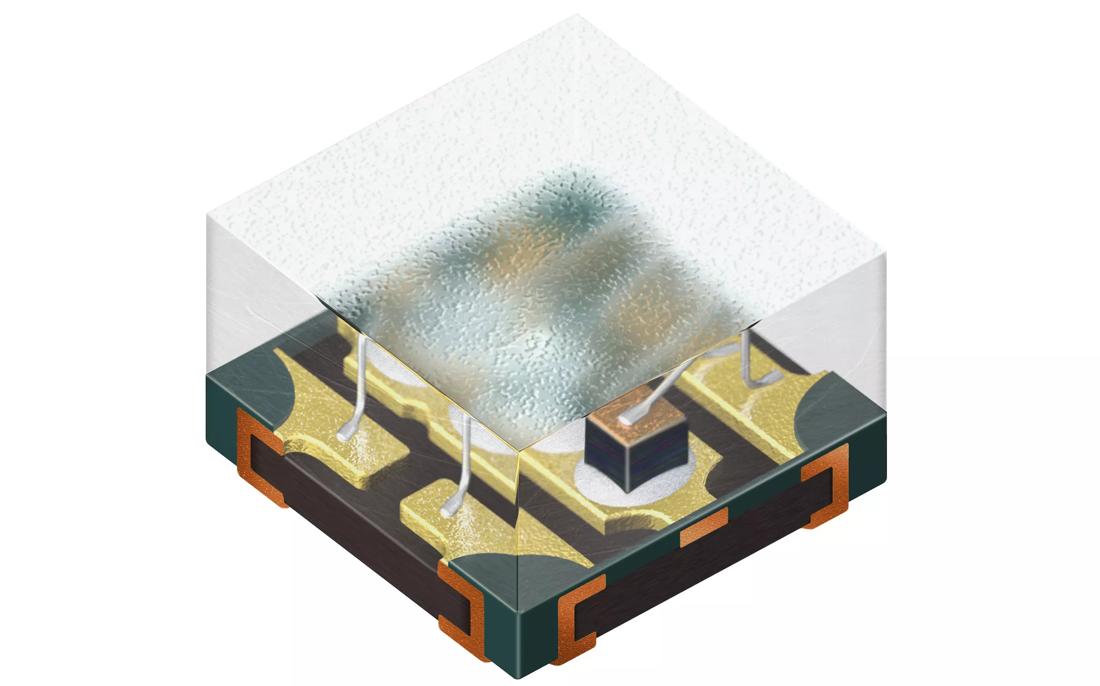

This device is especially designed for full color video walls. The 4-lead common anode technology facilitates an additive mixture of color stimuli by independent driving of each chip. Very compact package size fits best for high resolution narrow pitch video walls.

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.02 W
0.014 W
0.014 W
Low
Low
Low
Brightness
ΦV
0.336 lm
IV
0.102 cd
ΦE
1.57 mW
IE
0.474 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-30 °C
Top max.
85 °C
Dimension
l
1.0 mm
w
1.0 mm
h
0.65 mm

Application fields

Ordering codes

Product Type Description Order No. Availability
LRTBR48G-P9Q7-1+R7S5-26+NP-68 Iv = 63 ... 140 mcd (IF□=□10□mA)
Iv = 140 ... 315 mcd (IF□=□5□mA)
Iv = 28 ... 71 mcd (IF□=□5□mA)
Q65112A3521
