OSRAM Multi Chip LED, LRTBR98G

OSRAM Multi Chip LED, LRTBR98G
Ɨ

Description

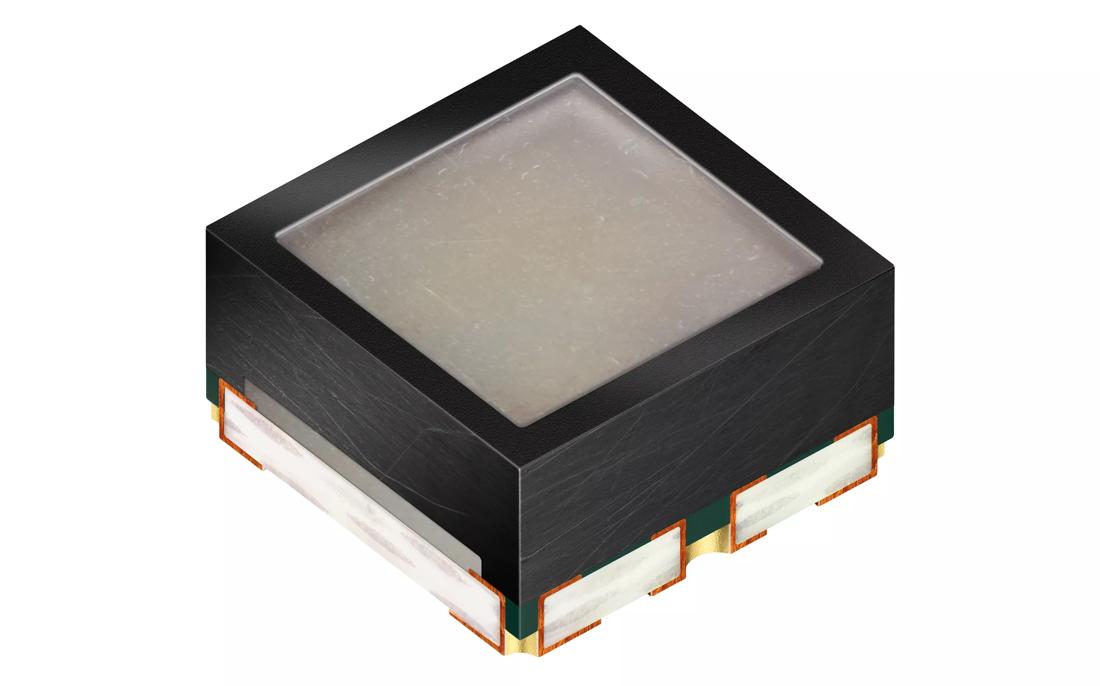

Miniature package design for highest pixel density, perfect for applications with short viewing distances, e. g. VIP areas. Premium contrast thanks to black package design.
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.041 W
0.064 W
0.064 W
Low
Low
Low
Brightness
Ī¦V
0.201 lm
IV
0.0775 cd
Ī¦E
2.69 mW
IE
1.04 mW/sr
Beam angle
āˆ¢
100 Ā°
Operating temperature
Top min.
-30 Ā°C
Top max.
85 Ā°C
Dimension
l
1.6 mm
w
1.6 mm
h
0.9 mm

Application fields

Lighting Entertainment

Ordering codes

Product Type Description Order No. Availability
LRTBR98G-R5T-1+S7T7-35+PQ-25 ā— Iv = 125 ... 450 mcd (IFā–”=ā–”20ā–”mA)
ā— Iv = 224 ... 560 mcd (IFā–”=ā–”20ā–”mA)
ā— Iv = 43 ... 112 mcd (IFā–”=ā–”20ā–”mA) 		Q65111A3103
