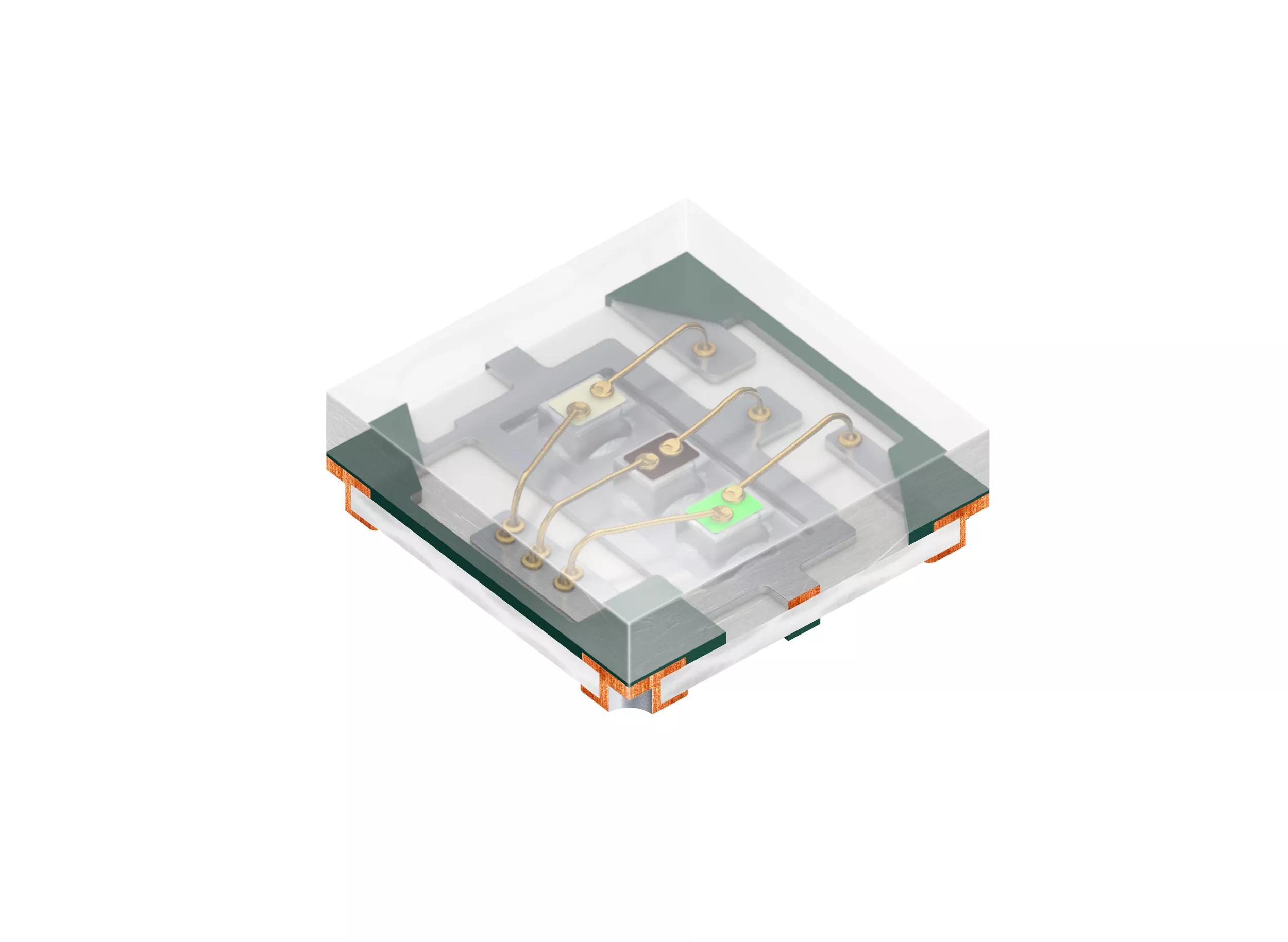

OSRAM Multi Chip LED, LTRBR37G

Ɨ

Description

This device was designed for low profile consumer applications. The 4-pin common anode technology emits an additive mixture of red, green and blue color by independent driving of each chip. Very compact package size and low z-height to support highly integrated consumer applications in displays or accents. Device is white binned.

Details

Parameters

Color of emission
True Green (513-545 nm)
Red (612-630 nm)
Blue (450-480 nm)
Electrical power
0.0054 W
0.0038 W
0.0056 W
Low
Low
Low
Brightness
Ī¦V
0.853 lm
IV
0.22 cd
Ī¦E
1.77 mW
IE
0.456 mW/sr
Beam angle
āˆ¢
120 Ā°
Operating temperature
Top min.
-40 Ā°C
Top max.
85 Ā°C
Dimension
l
1.0 mm
w
1.0 mm
h
0.25 mm

Application fields

Ordering codes

Product Type Description Order No. Availability
LTRBR37G-4R4S-0125 Iv = N/A (IFā–”=ā–”2ā–”mA)
ā— Iv = 159 ... 280 mcd (IFā–”=ā–”2ā–”mA)
Q65112A6714
