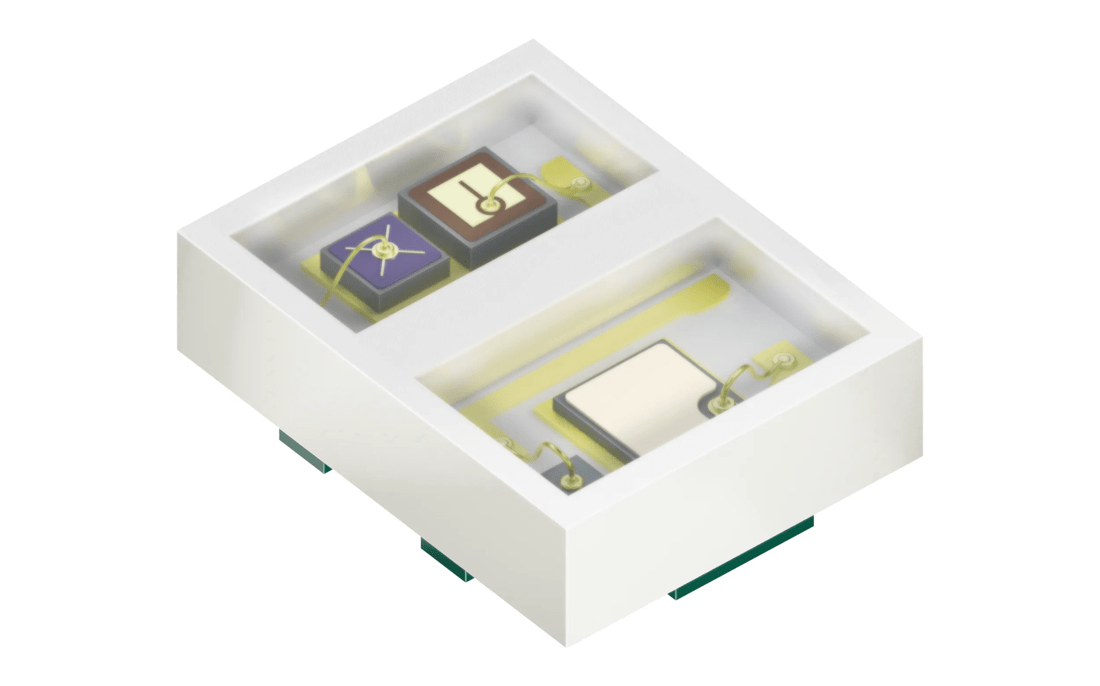

OSRAM Multi Chip LED, SFH 7019

New
×
New

Description

The SFH 7019 sets a new technological standard for optical sensors in wearables and digital health applications. As a compact 3-in-1 multi-chip LED, it combines a green, IR, and UV-A emitter in a single component, enabling the measurement of both classic vital parameters such as heart rate and the non-invasive determination of a new parameter, advanced glycation end products (AGEs). Together with our SFH 2705U photodiode, it enables precise measuring of AGEs.
Datasheet
SFH 7019
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Ultraviolet (100-380 nm)
True Green (513-545 nm)
Infrared (>800 nm)
Electrical power
0.068 W
0.048 W
0.026 W
Low
Low
Low
Brightness
ΦE
18 mW
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.85 mm
w
1.65 mm
h
0.6 mm

Ordering information

Product Type Description Ordering code Availability
SFH 7019 ● ultraviolet (UV-A) Ie = 5 ... 6.8 mW/sr (IF = 20 mA)
● Ie = 2.20 ... 5.40 mW/sr (IF = 20 mA)
● Ie = 1.8 ... 3.4 mW/sr (IF = 20 mA) 		Q65115A2526 Full production
