OSRAM MULTILED™, SFH 7018B

×

Description

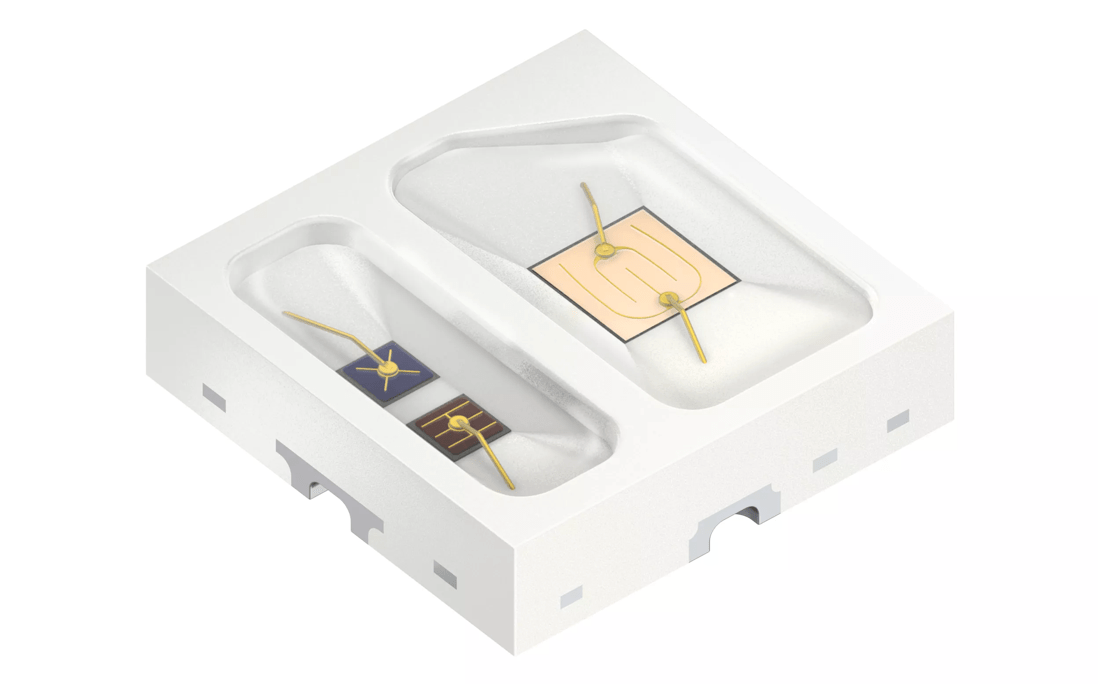

The SFH 7018A & SFH 7018B feature a highly reflective QFN package for significantly increased light output. Their sophisticated 2-cavity design reduces interferences between green chip on the one hand and red and IR chip on the other hand. Furthermore, the 2 cavities enables the light sources to be optimally placed relative to their respective photodiodes. Overall this leads to higher accuracy of measurement of vital signs (e.g. heart rate, SpO2). The SFH 7018B is optimized for maximum brightness.
Datasheet
SFH 7018B
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Hyper Red (635-666 nm)
Infrared (>800 nm)
Electrical power
0.047 W
0.038 W
0.026 W
Low
Low
Low
Brightness
ΦE
27 mW
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
2.4 mm
w
2.4 mm
h
0.6 mm

Ordering information

Product Type Description Ordering code Availability
SFH 7018B ● Ie = 7.50 ... 9.40 mW/sr (IF = 20 mA)
● Ie = 5.50 ... 7.30 mW/sr (IF = 20 mA)
● Ie = 3.70 ... 5.10 mW/sr (IF = 20 mA) 		Q65113A6158 Full production

Downloads

Datasheets
SFH 7018B · Datasheet · PDF · en_US

Application note
Eye safety of IREDs used in lamp applications · Product related · PDF · en_US
High-speed switching of IR-LEDs — Background and data sheet definition · Product related · PDF · en_US
SFH 7018 - Details on properties, handling and processing · Product related · PDF · en_US
Health monitoring · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
SFH_7018B_42x26mm_cmyk · Images · TIF
Block diagram SFH 7018B · Block diagram · EPS
