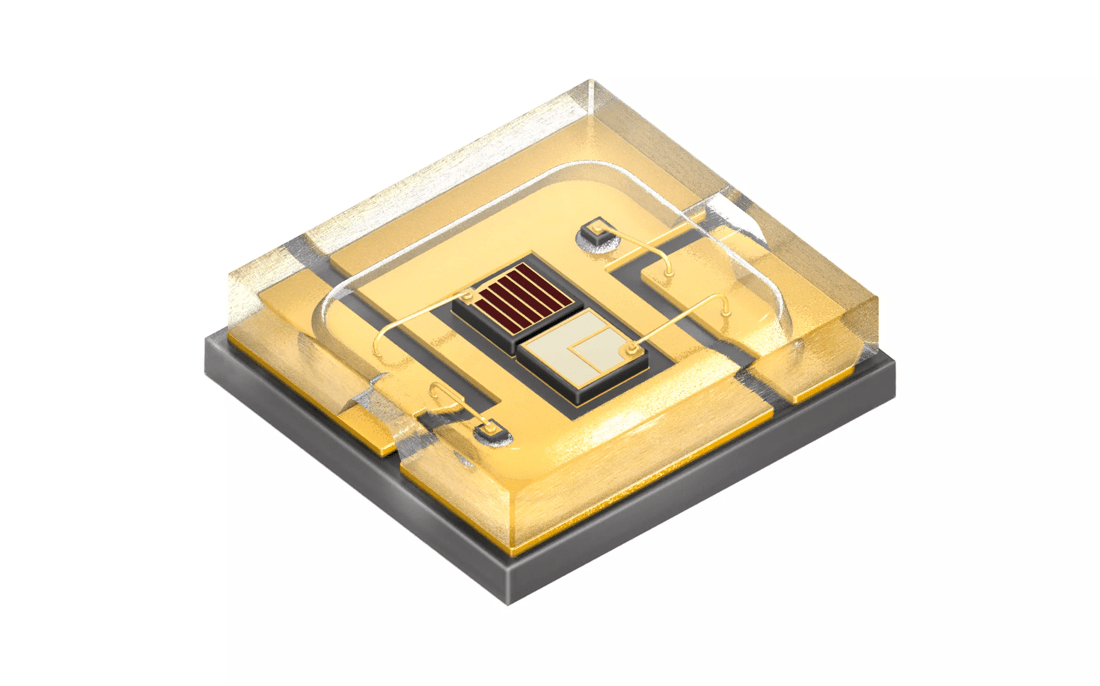

OSRAM OSRAM OSTAR™ Projection Compact, LE BR Q7WM

Discontinued
×
Discontinued

Description

Compact light source in SMT technology, glass window on top, RoHS compliant
Datasheet
LE BR Q7WM
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Red (612-630 nm)
Electrical power
1.2 W
0.81 W
High
High
Brightness
ΦV
58 lm
IV
19.8 cd
ΦE
236 mW
IE
80.5 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
3.9 mm
w
3.65 mm
h
1.1 mm

Ordering information

Product Type Description Ordering code Availability
LE BR Q7WM-TGTI-24+JXJZ-23 ● ΦE = 280 ... 450 mW (IF = 350 mA)
● ΦV = 45 ... 71 lm (IF = 350 mA) 		Q65112A7832 Discontinued

Downloads

Datasheets
LE BR Q7WM · Datasheet · PDF · en_US

Application note
Projection with LED light sources · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
LE BR Q7WM · Images · TIF

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide

Product selector

Find the right product.
Product selector

More multi color LEDs
