Details
Parameters
Color of emission
Ultraviolet (100-380 nm)
Electrical power
0.59
W
Mid
Brightness
ΦE
13.5
mW
Beam angle
∢
120
°
Operating temperature
Top
min.
-30
°C
Top
max.
85
°C
Dimension
l
3.5
mm
w
3.5
mm
h
1.53
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| SU CULCN1.VC-GAGD-67-0 | ΦE = 10 ... 18 mW (IF = 100 mA) | Q65113A3141 | |
| SU CULCN1.VC-GDGG-67-4F4G | ΦE = 16 ... 24 mW (IF = 100 mA) | Q65113A6335 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
For other documents visit our
Download center
Application note
OSLON® UV — Details on properties, handling and processing
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

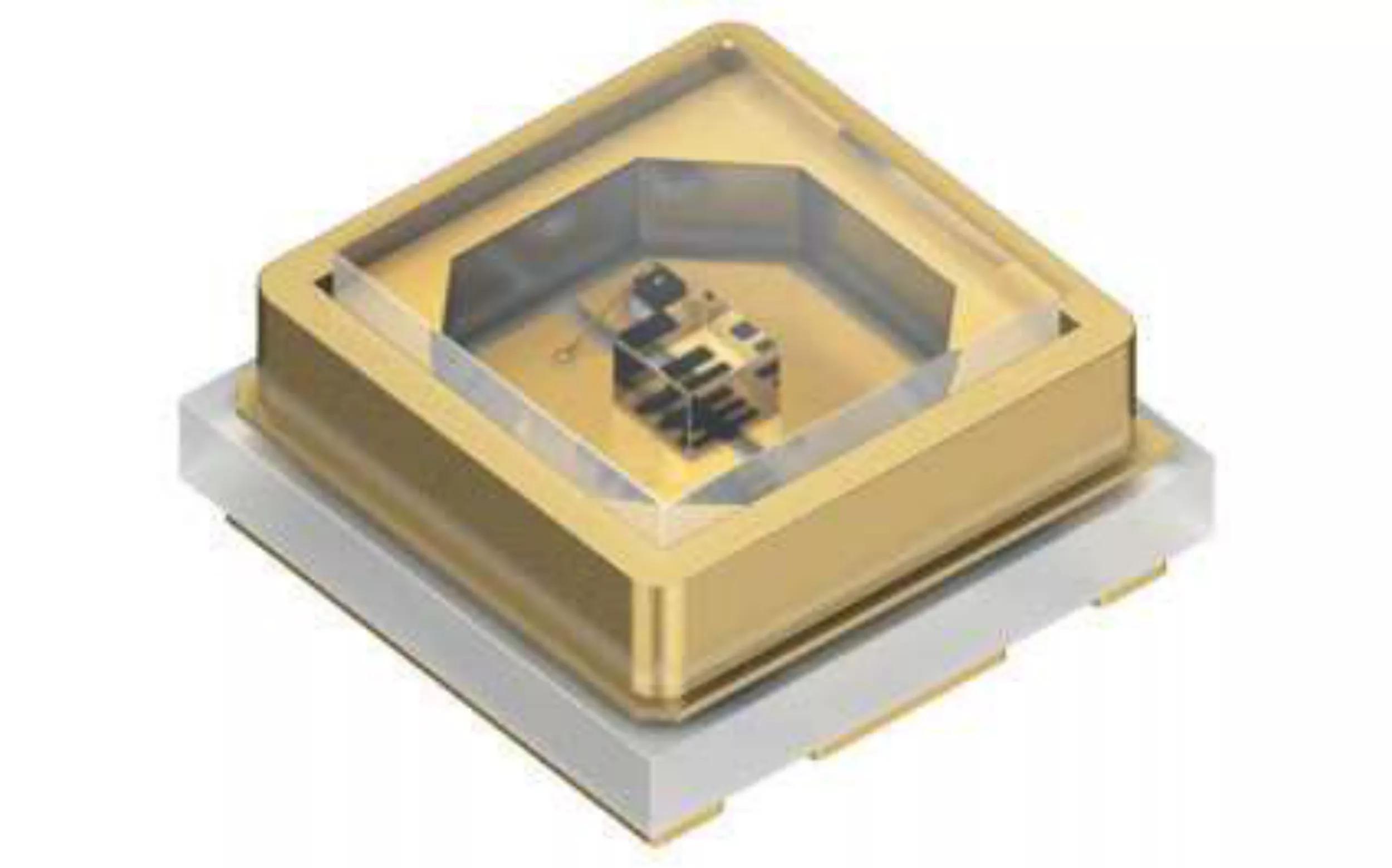

SU_CULCN1-VC_36x22.4mm_cmyk
